Lamp-Park/Turn-Right Front (Except Export) (D4557A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 7287-0955-30

Part Description: YESC RP SUB ASSEMBLY W/CPA (TOP LOCK)

Connector No: D4557A

Option: EXCEPT EXPORT

Repair Kit Part Number: 68064998AA

Cavity Count: 3

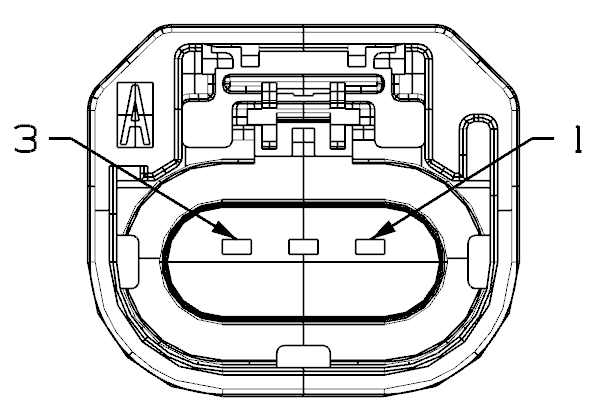

Fig 1: Lamp-Park/Turn-Right Front Connector End View (Except Export)

Courtesy of CHRYSLER

Fig 2: Lamp-Park/Turn-Right Front Component Location (Except Export)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z909

0.50

GROUND

N/A

L70

WT/GY

0.50

FUSED PARK LAMP FEED

N/A

L60

WT/TN

0.50

RIGHT FRONT TURN LAMP DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
