Lock-Up/Select Solenoid (D9120)

Harness-Family: Internal_Trans_Jumper

Color: NA

Gender: FEMALE

Part Number: HARD_WIRED

Part Description: Not Available

Connector No: D9120

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Lock-Up/Select Solenoid Connector End View

GCWD1006457

Courtesy of CHRYSLER

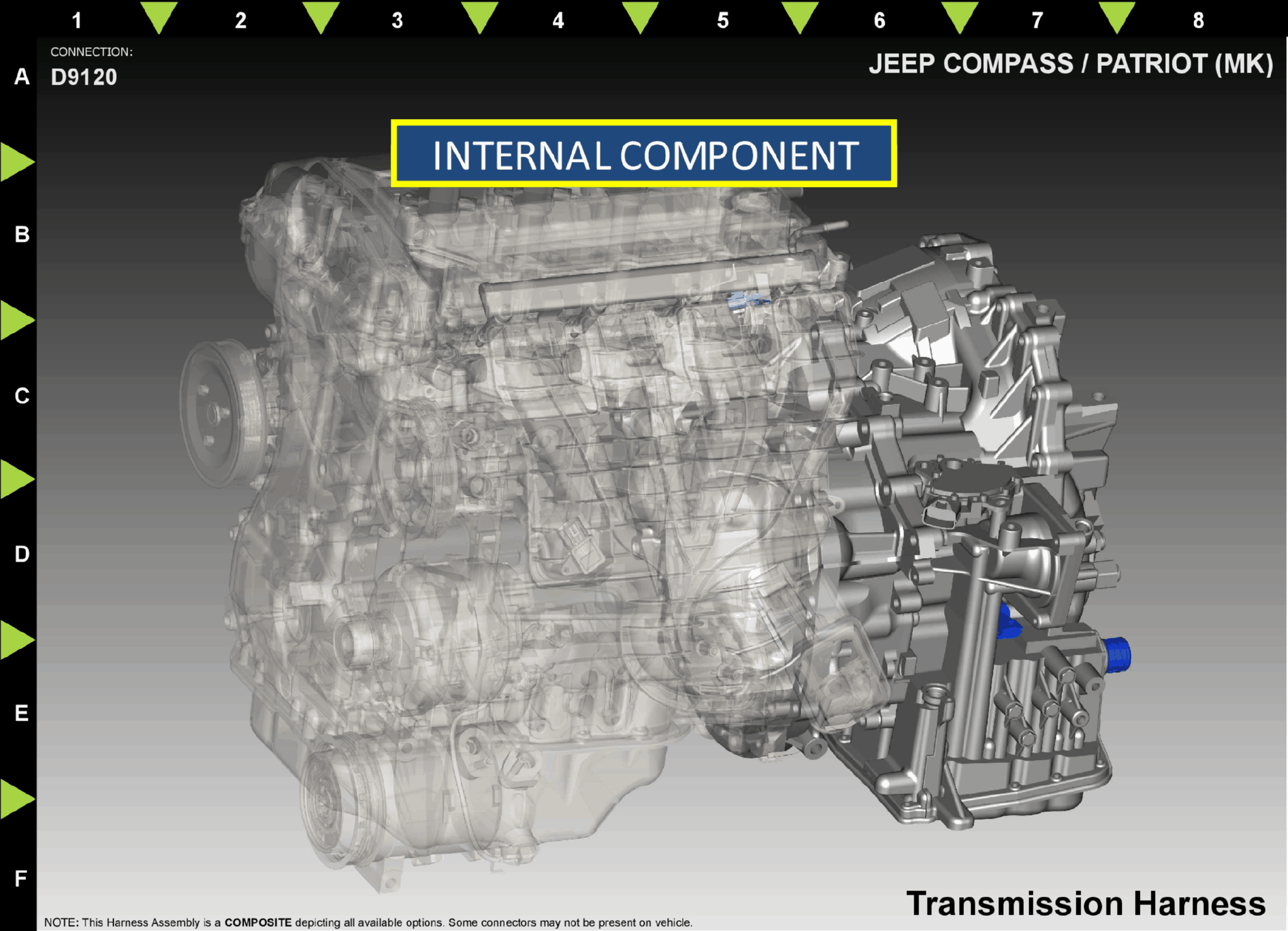

Fig 2: Lock-Up/Select Solenoid Component Location

GCWD1211978

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

T59

YL/RD

0.35

UD CONTROL

N/A

2

Z906

YL/RD

0.35

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
