Module-Anti-Lock Brakes (LHD) (D3863A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 54394780

Part Description: ABS CONNECTOR SUB ASSEMBLY

Connector No: D3863A

Option: LHD

Repair Kit Part Number: Not Available

Cavity Count: 47

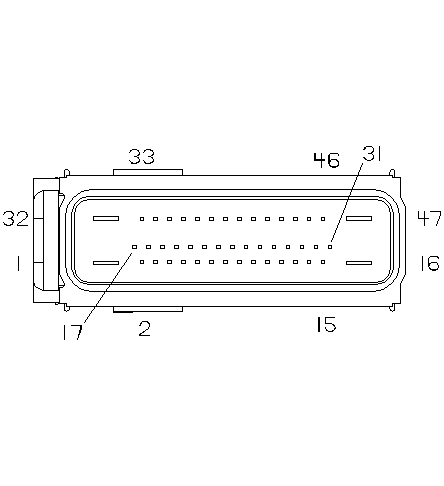

Fig 1: Module-Anti-Lock Brakes Connector End View (LHD)

Courtesy of CHRYSLER

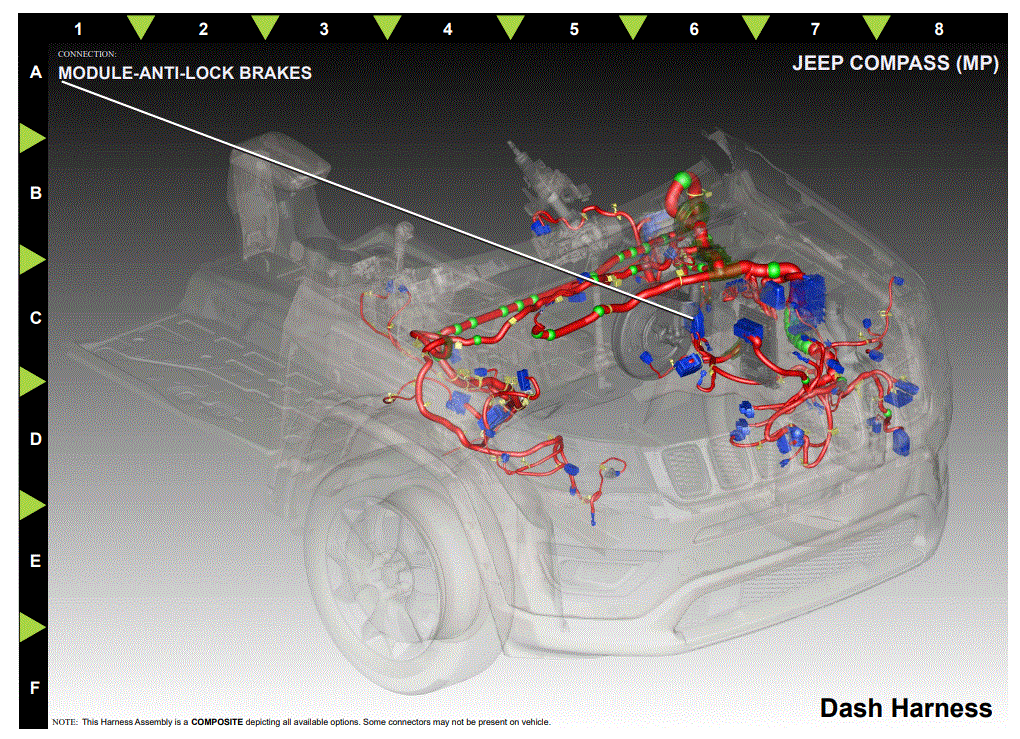

Fig 2: Module-Anti-Lock Brakes Component Location (LHD)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F202

PK/GY

0.80

IGNITION RUN/START CONTROL OUTPUT

N/A

Z909

GROUND

N/A

B122

DG/LG

0.50

BRAKE LAMP ACTIVATION RELAY CONTROL

N/A

Z909

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
