Module-Hands Free C1 (D3887A)

Harness-Family: IP

Color: DARK GRAY

Gender: FEMALE

Part Number: 917989-6

Part Description: INSULATOR

Connector No: D3887A

Option: Standard

Repair Kit Part Number: 05083221AA

Cavity Count: 22

Fig 1: Module-Hands Free C1 Connector End View

GCWD1016904

Courtesy of CHRYSLER

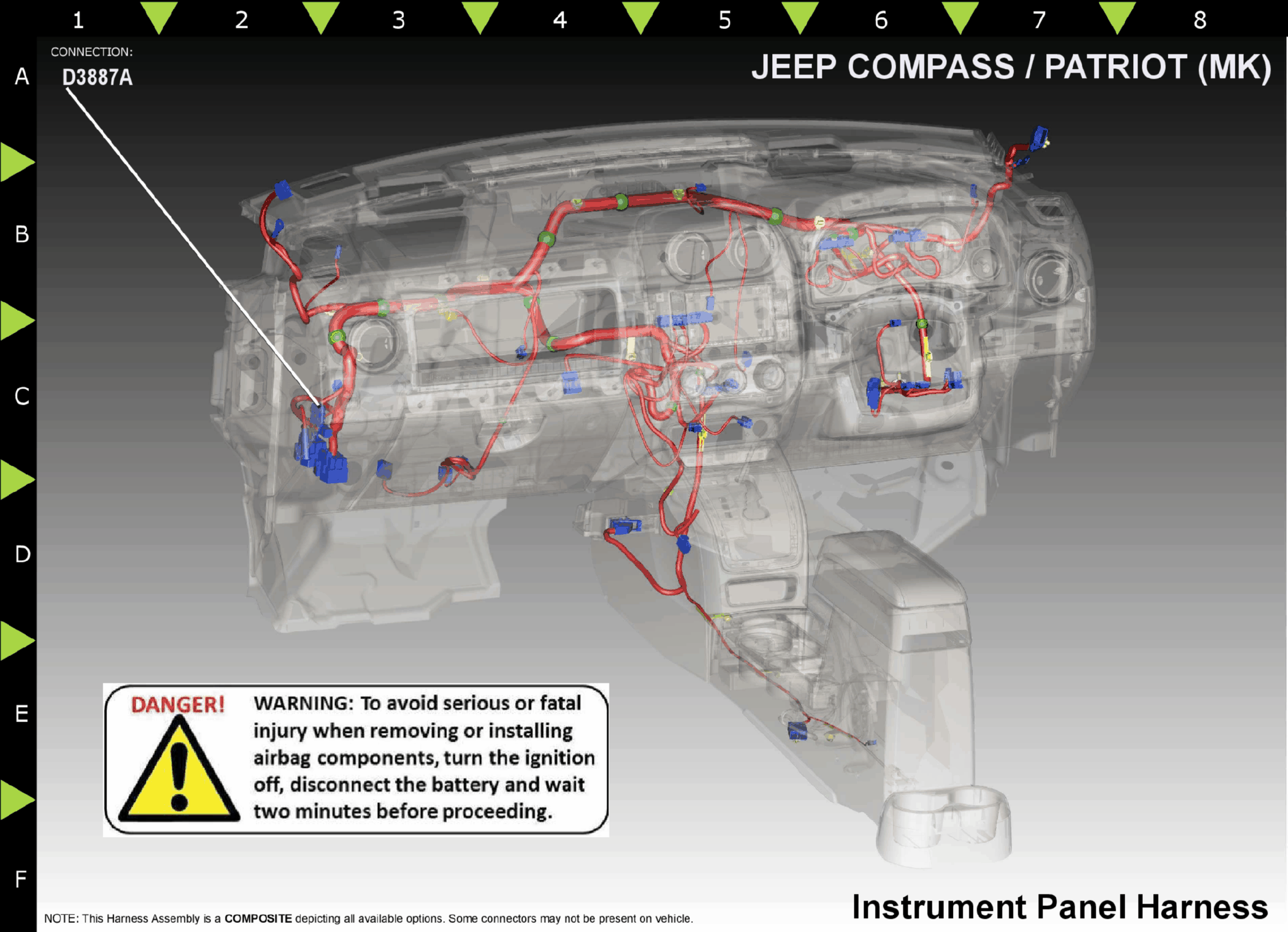

Fig 2: Module-Hands Free C1 Component Location

GCWD1160390

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A417

RD

0.35

FUSED B(+)

N/A

4

D54

WH/PK

0.35

CAN B (-)

N/A

5

X722

LB/DG

0.35

MICROPHONE 2 IN (+)

N/A

8

X703

DG/OR

0.35

LEFT AUDIO OUTPUT

N/A

9

X704

DG/PK

0.35

RIGHT AUDIO OUTPUT

N/A

10

X795

DG

0.35

COMMON AUDIO OUTPUT

N/A

14

D55

WH/OR

0.35

CAN B (+)

N/A

16

X712

DB/WT

0.35

MICROPHONE 1 IN (+)

N/A

17

X792

LB/BG

0.35

MICROPHONE IN (-)

N/A

20

X793

DG/YE

0.35

MICROPHONE FEED

N/A

21

X835

OR/BK

0.35

SENSOR GROUND

N/A

22

Z912

BK

0.80

GROUND

LATE BUILD

⁽¹⁾	Pins not listed are not used for this connector
