Module-Heated Seats (D3846A)

Harness-Family: Seat_Left

Color: BLACK

Gender: FEMALE

Part Number: 15326931

Part Description: GT 280 CONNECTOR ASSEMBLY

Connector No: D3846A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 10

Fig 1: Module-Heated Seats Connector End View
GCWD1024643Courtesy of CHRYSLER

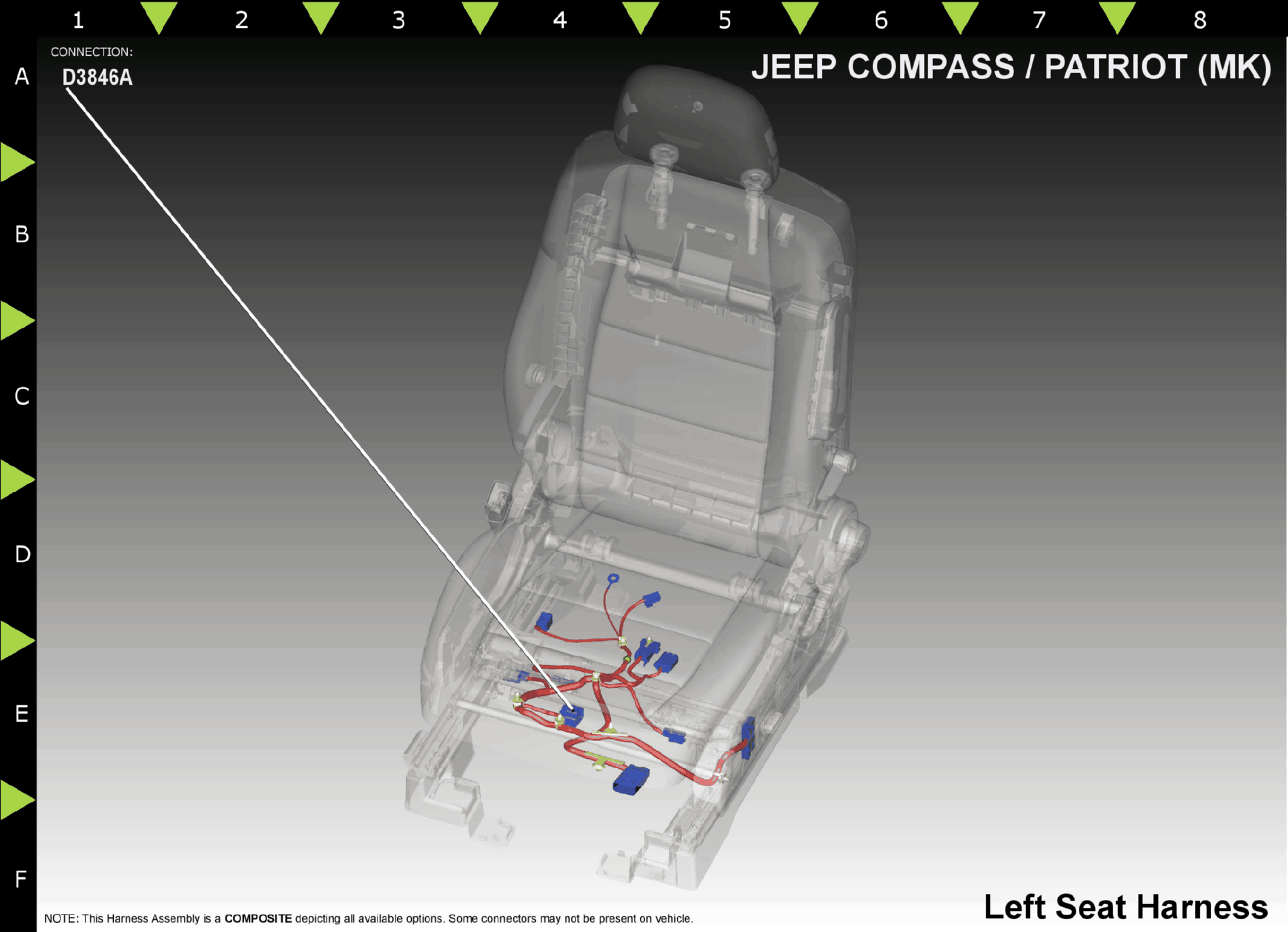

Fig 2: Module-Heated Seats Component Location
GCWD1160576Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
E F937 PK/YL 16 FUSED IGNITION SWITCH OUTPUT (RUN) N/A
F Z960 BK/LB 16 GROUND N/A
D P187 LG/BR 0.80 LEFT FRONT SEAT HEATER CONTROL N/A
J D506 WT/DG 0.50 LIN BUS N/A
K P188 LG/VT 0.80 RIGHT FRONT SEAT HEATER CONTROL N/A
(1) Pins not listed are not used for this connector
