Module-Totally Integrated Power C1 (D3830A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 7283-3522-30

Part Description: 13P (9P KAIZEN 0.64 + 4P YESC 1.5)

Connector No: D3830A

Option: Standard

Repair Kit Part Number: 68020744AA

Cavity Count: 13

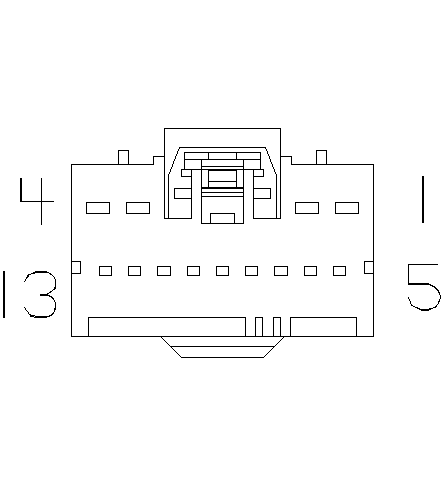

Fig 1: Module-Totally Integrated Power C1 Connector End View

Courtesy of CHRYSLER

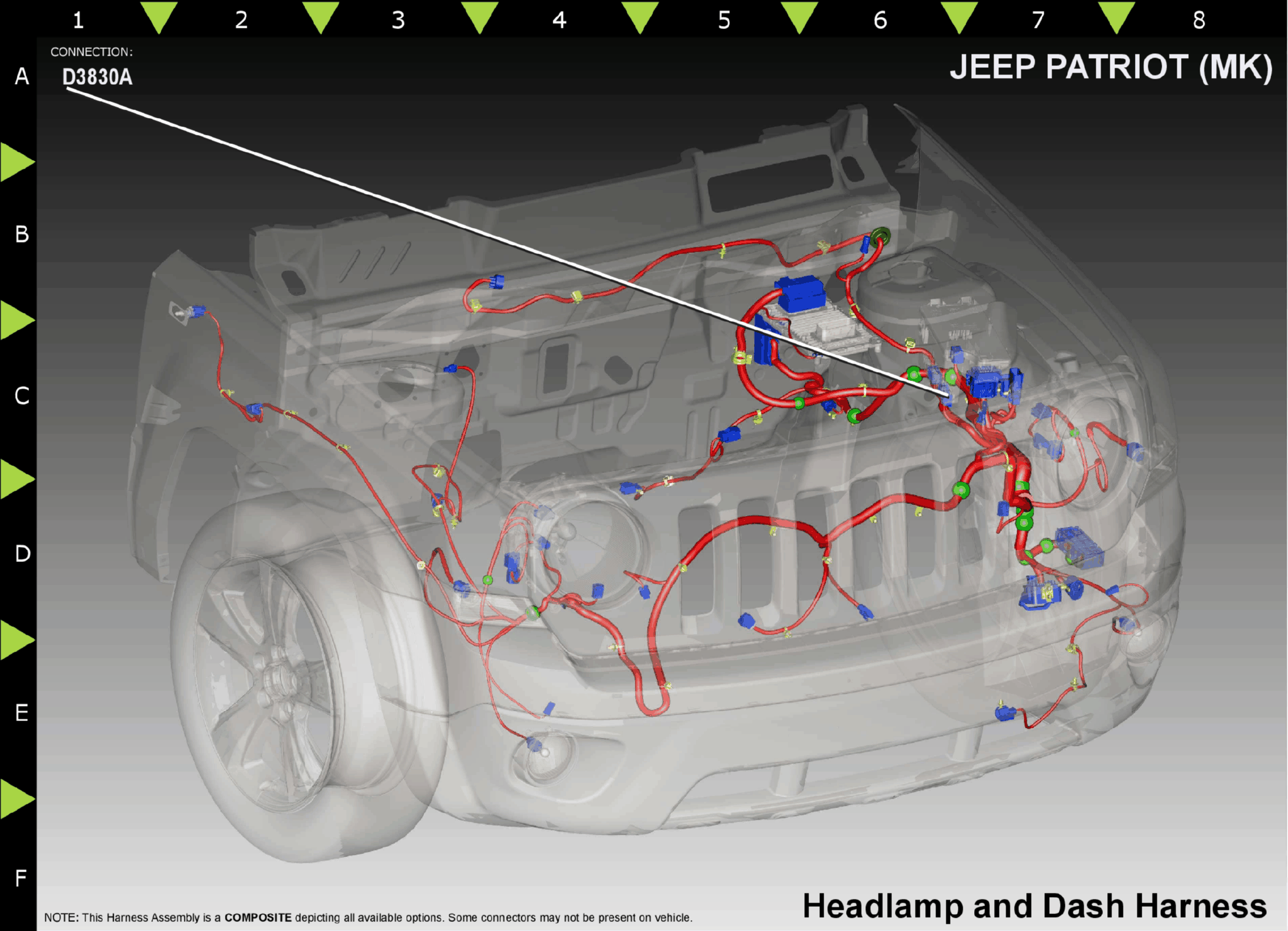

Fig 2: Module-Totally Integrated Power C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

W20

BR/YL

0.50

REAR WASHER PUMP MOTOR CONTROL

N/A

W10

0.50

FRONT WASHER PUMP MOTOR CONTROL

N/A

F20

PK/WT

0.50

IGNITION RUN/START CONTROL OUTPUT

N/A

L57

WT/GY

0.50

DAY TIME RUNNING LAMPS SIG

N/A

L157

TN/BR

0.50

DAYTIME RUNNING LAMPS SIGNAL

N/A

B20

DG/OR

0.50

BRAKE FLUID LEVEL SIGNAL

N/A

Z906

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
