Node-Wireless Ignition (D3915A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 638971-2

Part Description: CONNECTOR (PLUG HOUSING SIDE LOCK/CPA)

Connector No: D3915A

Option: Standard

Repair Kit Part Number: 68064994AA

Cavity Count: 8

Fig 1: Node-Wireless Ignition Connector End View

Courtesy of CHRYSLER

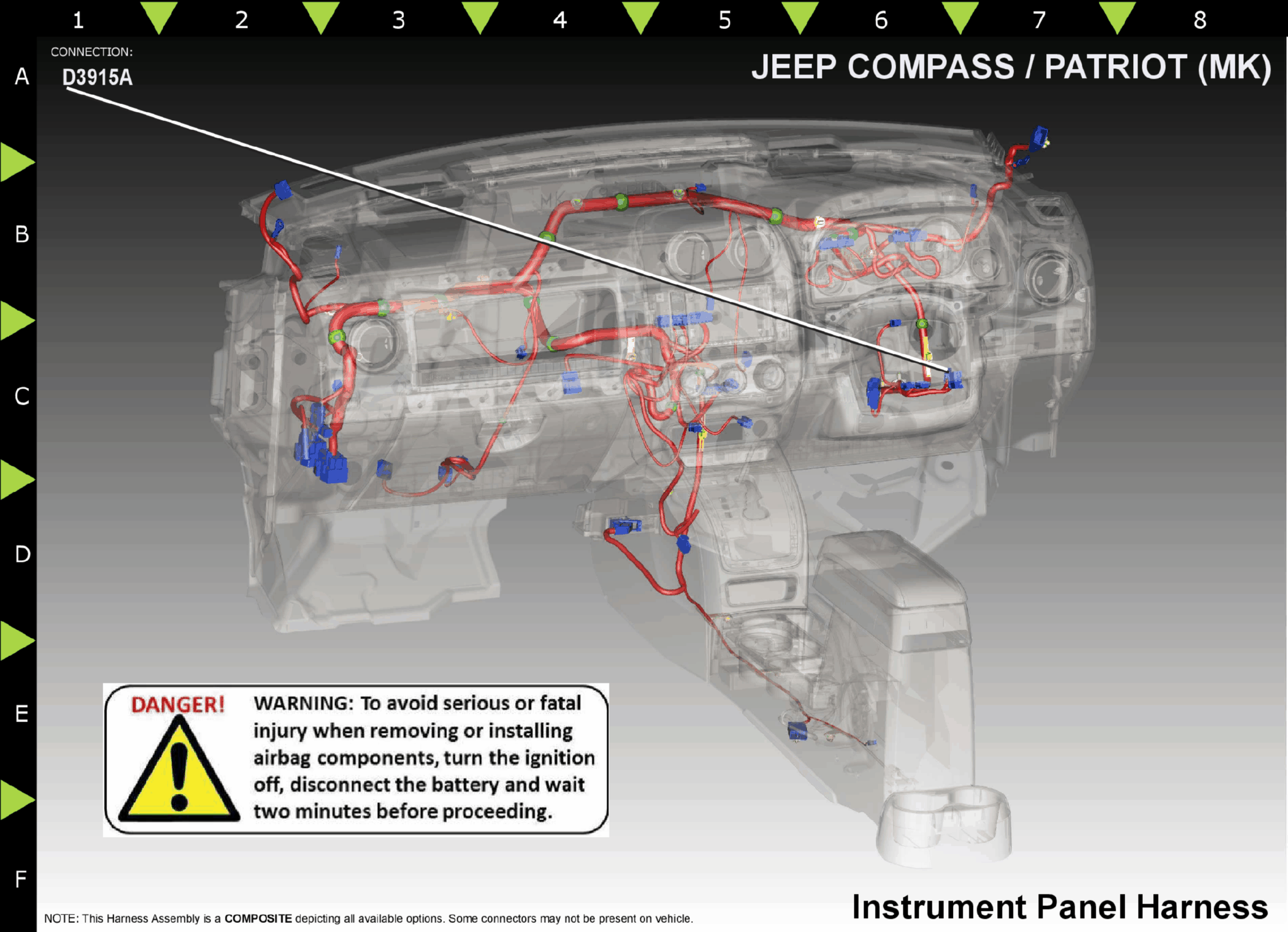

Fig 2: Node-Wireless Ignition Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G20

VT/BR

0.35

IGNITION SWITCH SENSE

N/A

D508

WH/GY

0.35

LIN TIRE PRESSURE MONITOR LAN

N/A

F20

PK/WH

0.35

IGNITION RUN/START CONTROL OUTPUT

N/A

Z912

0.50

GROUND

N/A

A411

0.35

FUSED B(+)

N/A

D55

WH/OR

0.35

CAN B (+)

N/A

D54

WH/PK

0.35

CAN B (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
