Compass Sport SE, 2.0L Eng VIN A
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Electrical Component Locations
>>
Connector End Views & Electrical Component Locations (2 Of 3)
>>
Power Distribution Center (PDC) (Gas) Layout
Power Distribution Center (PDC) (Gas) Layout

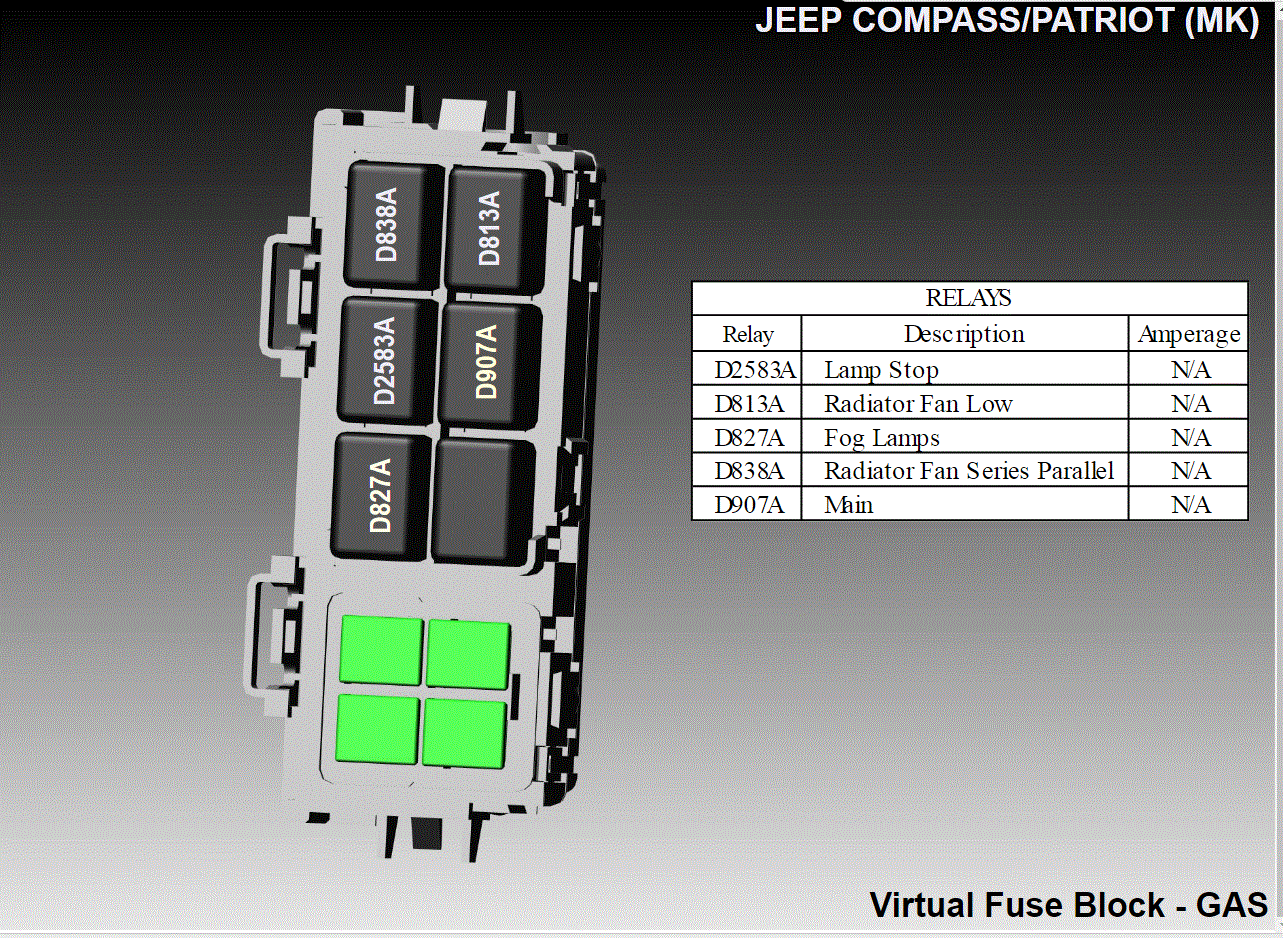

Fig 1: PDC (Gas) Layout
Courtesy of CHRYSLER
Courtesy of CHRYSLER
