Power Outlet-Instrument Panel (D7410A)

Harness-Family: IP

Color: NATURAL

Gender: FEMALE

Part Number: 7287-1810

Part Description: Not Available

Connector No: D7410A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

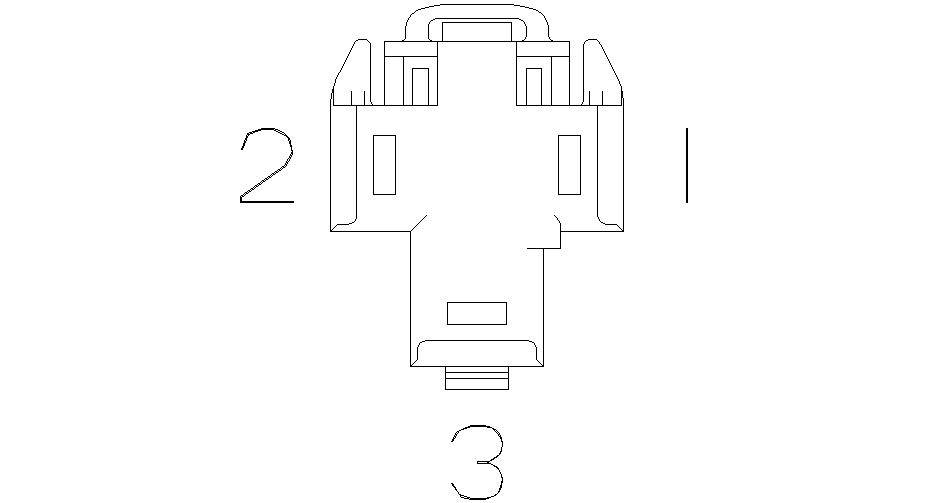

Fig 1: Power Outlet-Instrument Panel Connector End View

Courtesy of CHRYSLER

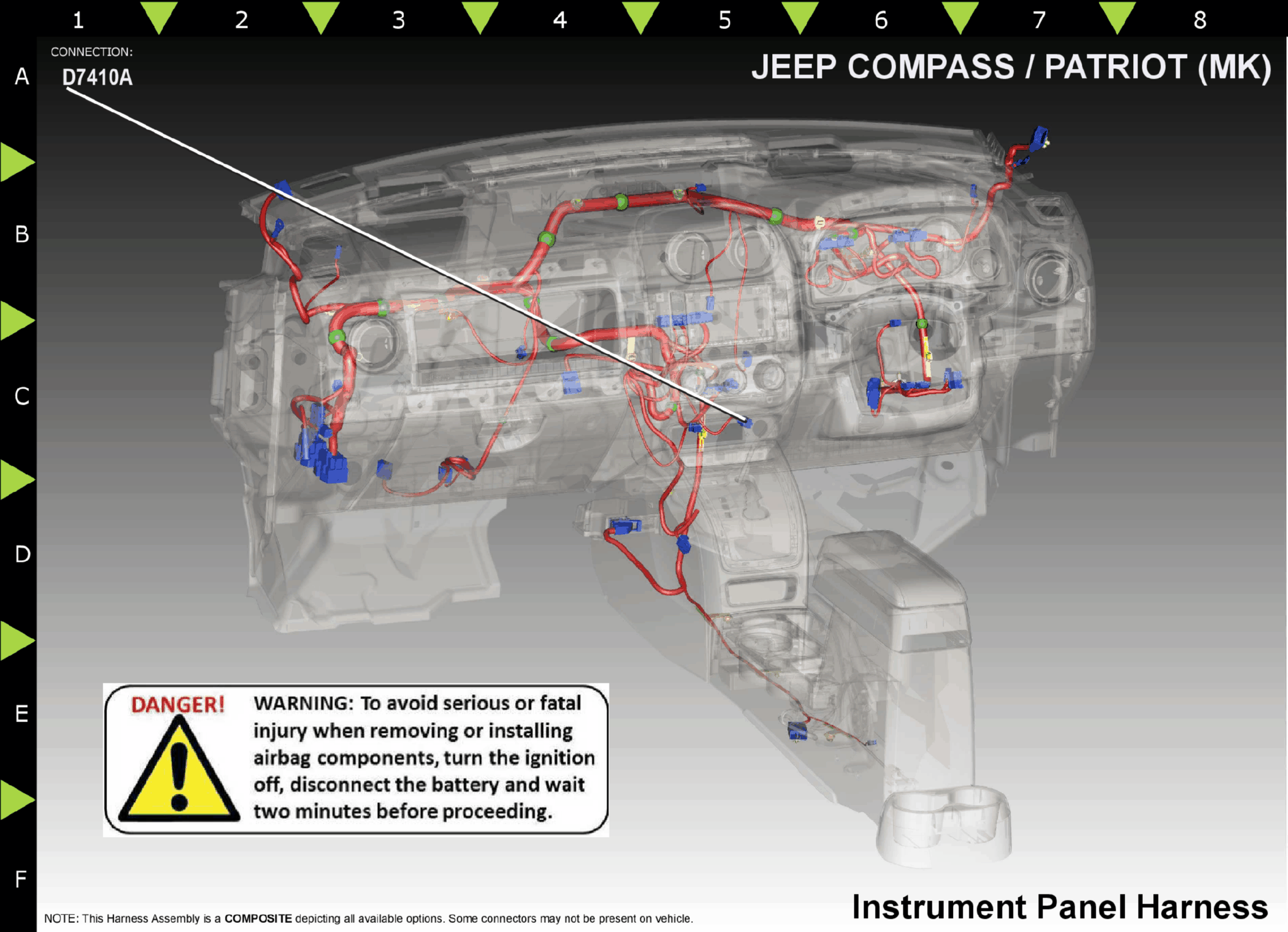

Fig 2: Power Outlet-Instrument Panel Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F986

PK/BK

0.80

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

N/A

Z911

0.80

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
