Connector End Views & Electrical Component Locations (2 Of 3): S316
Harness-Family: Console_Center
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available

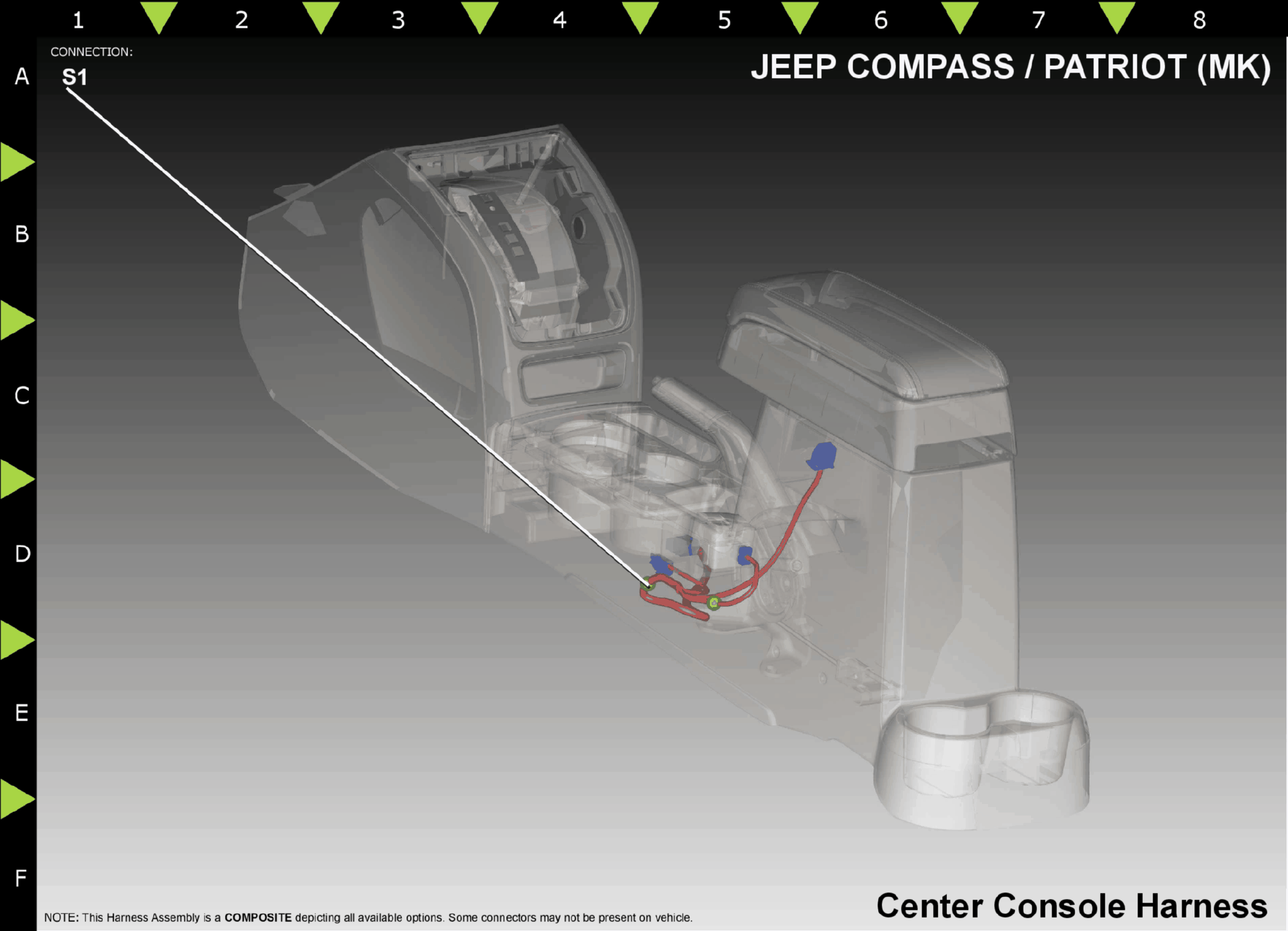

Connector No: S1
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z903 | BK/YL | 0.50 | GROUND | N/A | ||
| 1 | Z908 | BK/LG | 0.50 | GROUND | N/A | ||
|
|||||||
