SD54 (IP)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SD54

Option: IP

Repair Kit Part Number: Not Available

Cavity Count: ~~

Fig 1: Sd54 Connector End View (IP)

GCWD1006420

Courtesy of CHRYSLER

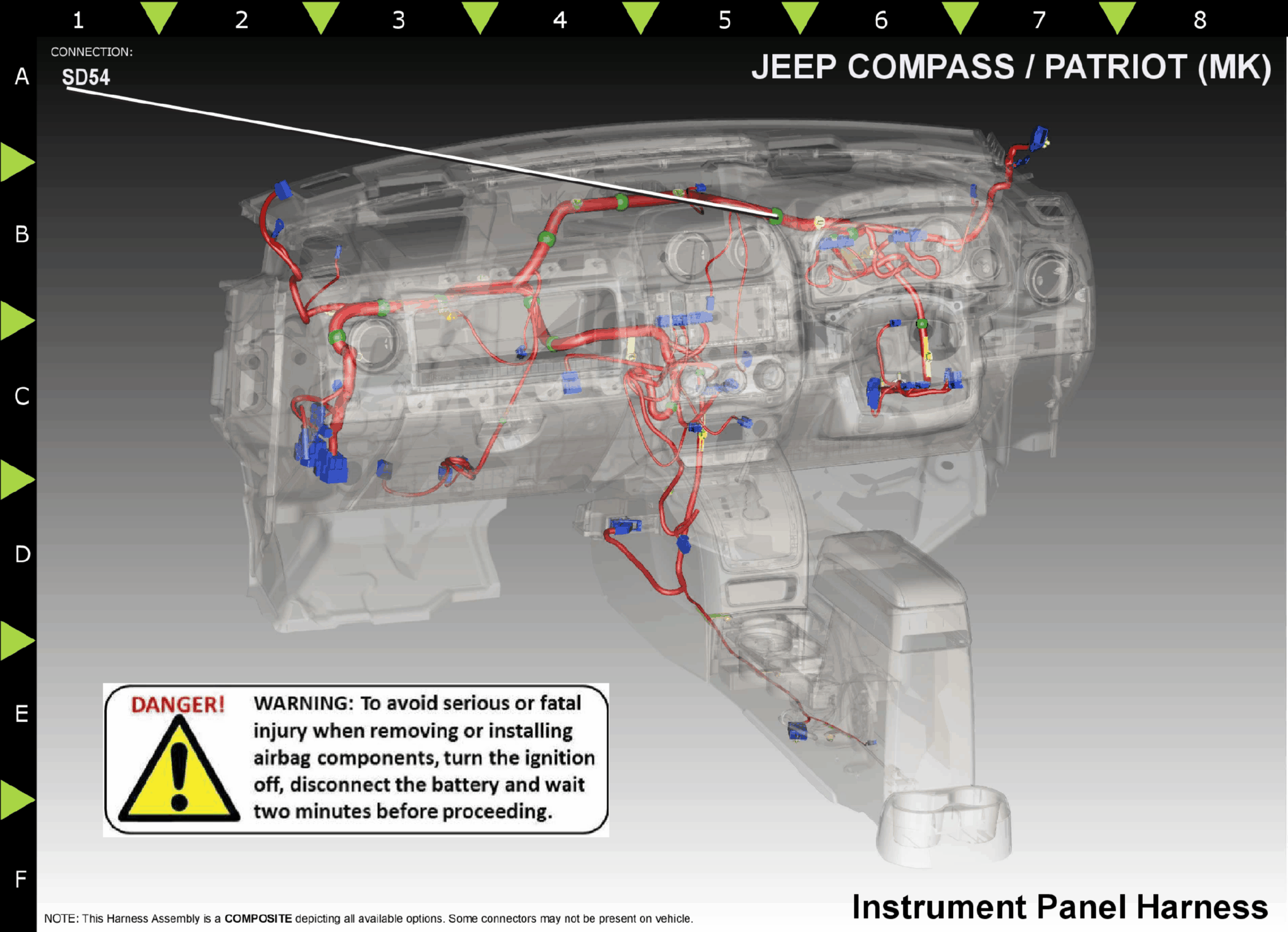

Fig 2: Sd54 Component Location (IP)

GCWD1160611

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D54

WH/PK

0.35

CAN B (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
