Sensor-Camshaft Position (D1510A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: F519600

Part Description: Not Available

Connector No: D1510A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Sensor-Camshaft Position Connector End View

Courtesy of CHRYSLER

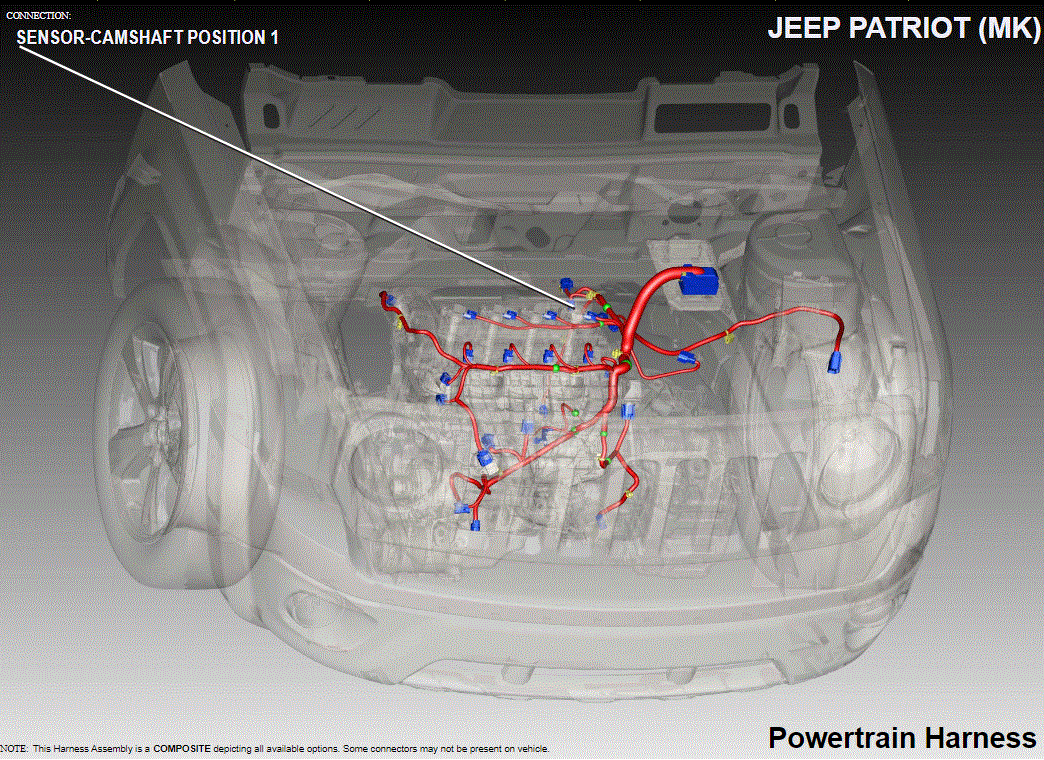

Fig 2: Sensor-Camshaft Position Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F856

YL/PK

0.50

5 VOLT SUPPLY

N/A

K900

DB/DG

0.50

SENSOR GROUND

N/A

K44

DB/GY

0.50

CMP SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
