Sensor-Fuel Tank Pressure (D2487A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 12186687

Part Description: Not Available

Connector No: D2487A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

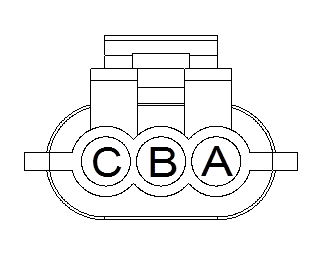

Fig 1: Sensor-Fuel Tank Pressure Connector End View
GCWD1130564Courtesy of CHRYSLER

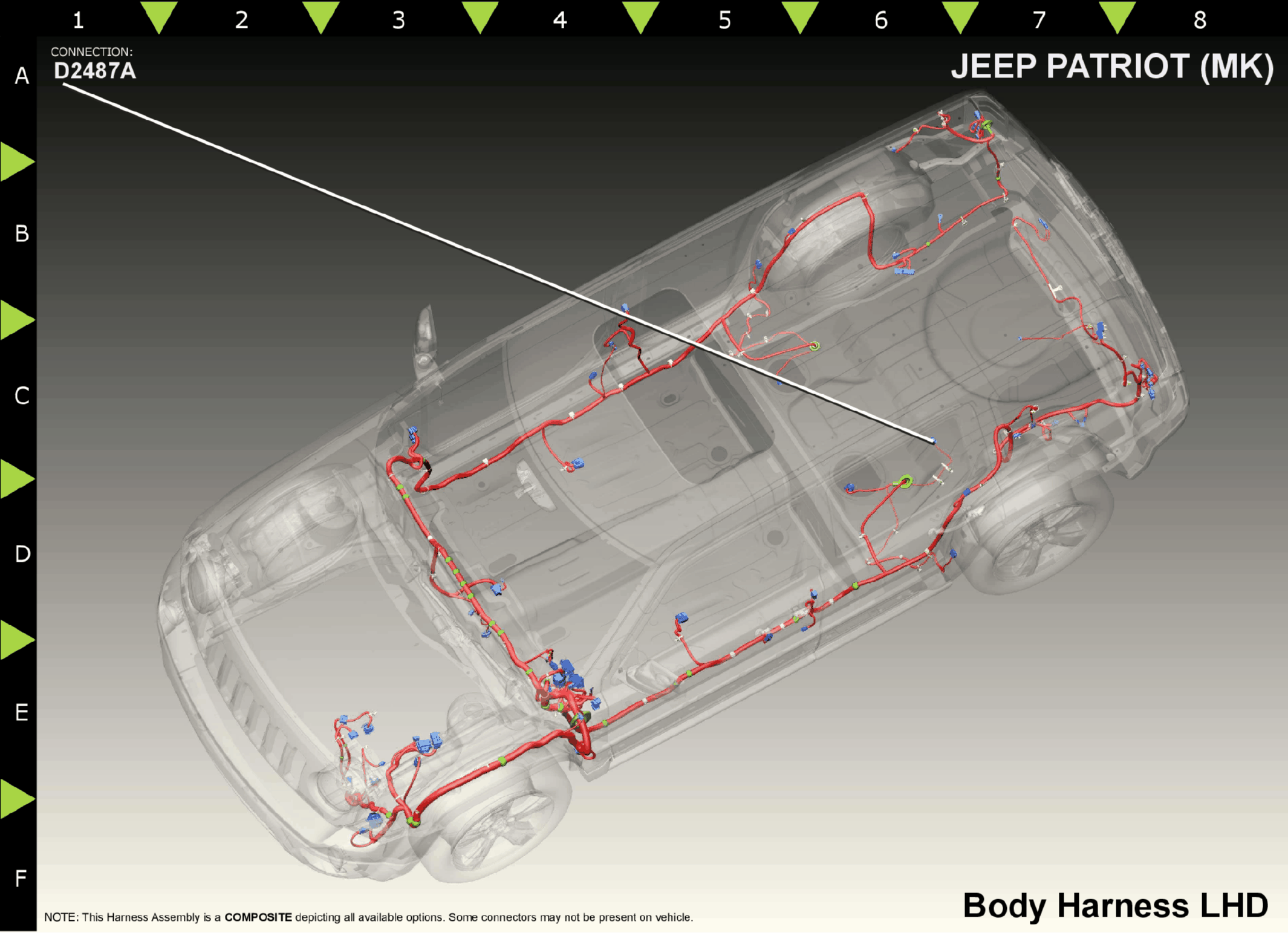

Fig 2: Sensor-Fuel Tank Pressure Component Location
GCWD1212015Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
C K856 BR/YL 0.50 5 VOLT SUPPLY N/A
A K975 BR/TN 0.50 SIGNAL RETURN N/A
(1) Pins not listed are not used for this connector
