Sensor-Engine Oil Temperature (D1544A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 33214-0006

Part Description: Not Available

Connector No: D1544A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Sensor-Engine Oil Temperature Connector End View

Courtesy of CHRYSLER

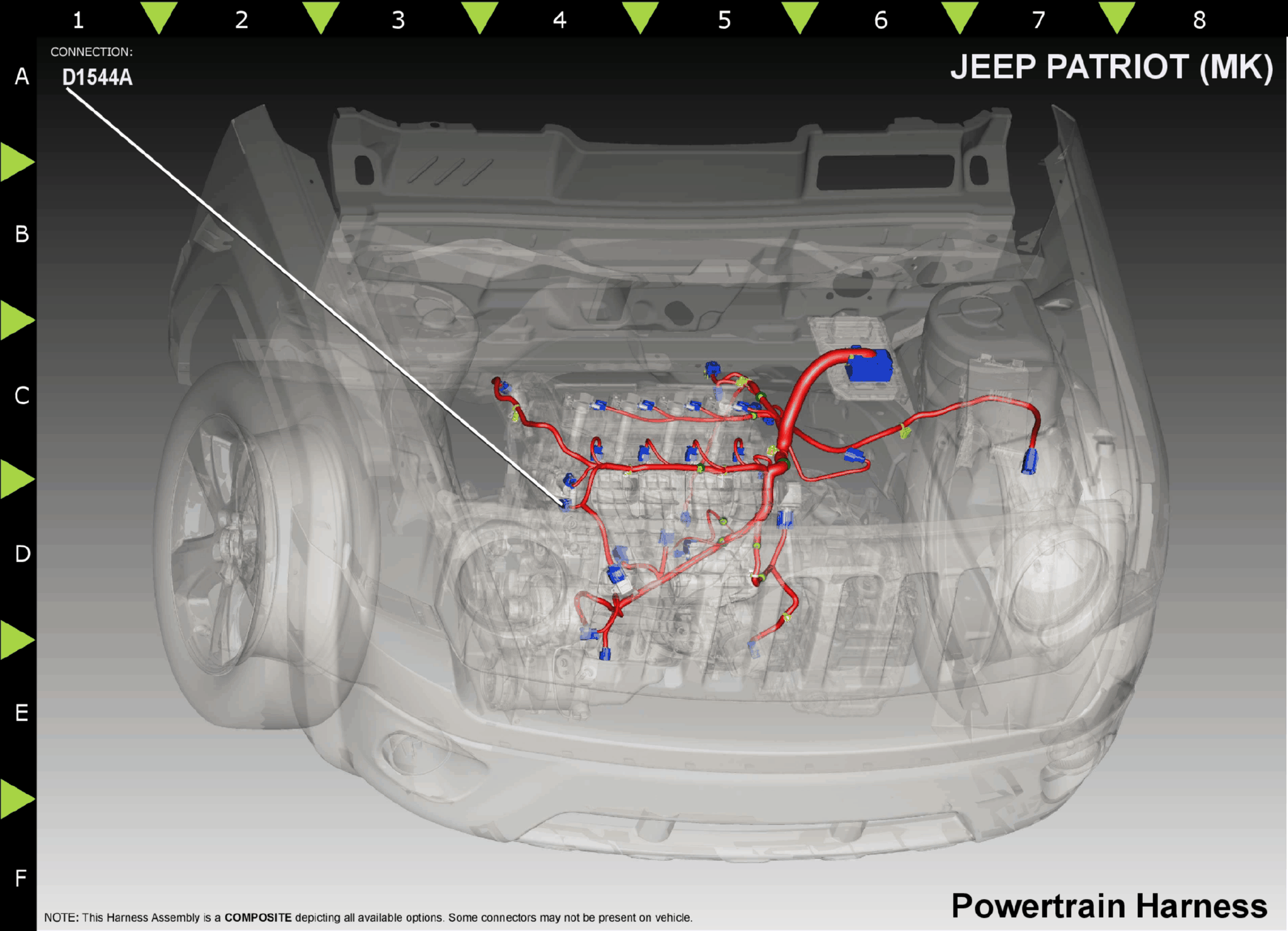

Fig 2: Sensor-Engine Oil Temperature Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G24

VT/BR

0.50

EOT SIGNAL

N/A

K915

BR/WT

0.50

SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
