Connector End Views & Electrical Component Locations (2 Of 3): SL7

Harness-Family: HDLP_Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SL7

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: ~~

Fig 1: Sl7 Connector End View

Courtesy of CHRYSLER

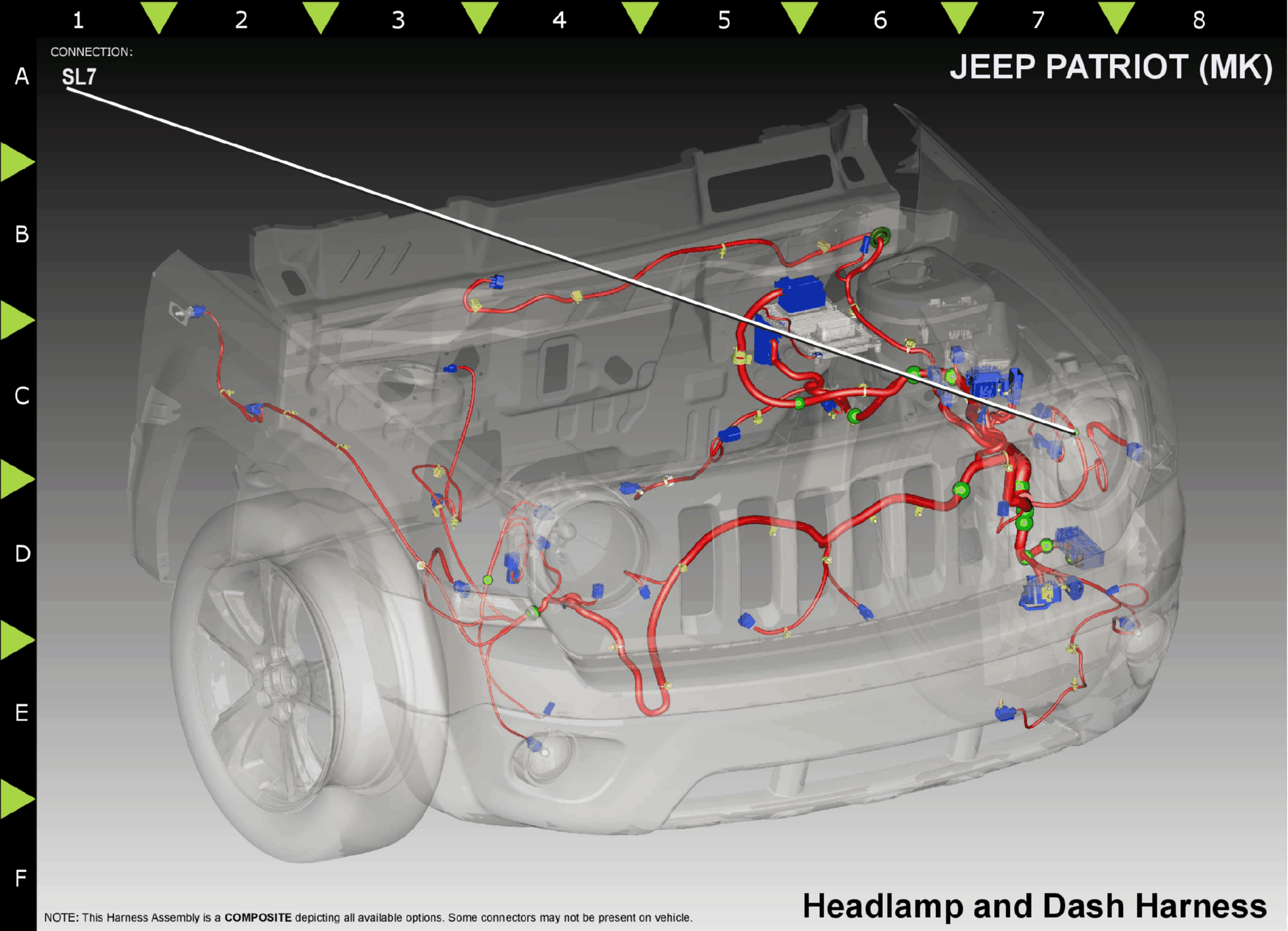

Fig 2: Sl7 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

WT/YL

0.50

PARK LAMP RELAY OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
