Connector End Views & Electrical Component Locations (2 Of 3): Sq15

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SQ15

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: ~~

Fig 1: Sq15 Connector End View

Courtesy of CHRYSLER

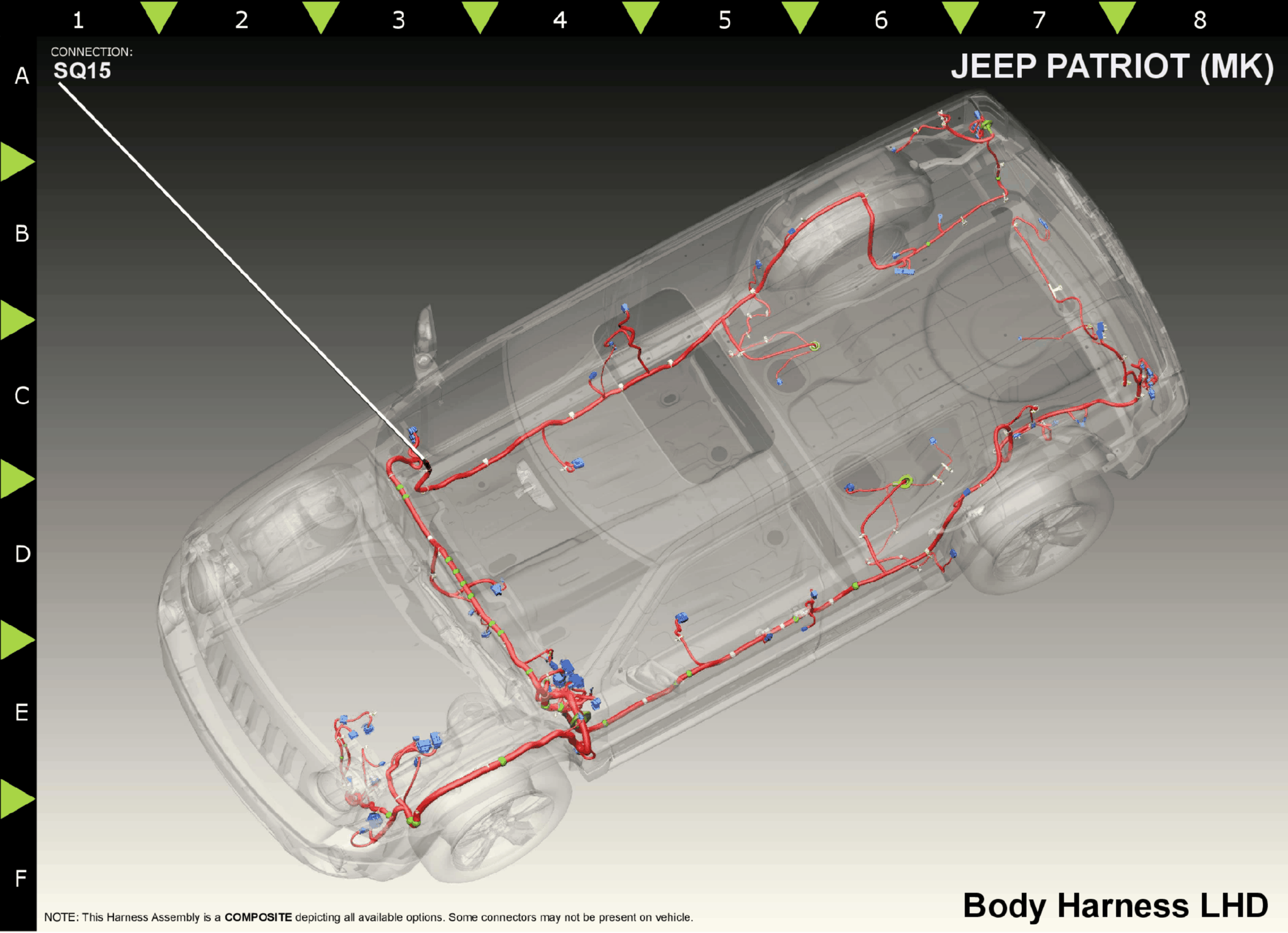

Fig 2: Sq15 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Q15

OR/RD

WINDOW LOCK OUT SWITCH OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
