Switch-Mirror (LHD) (D2272A)

Harness-Family: Door_Front_Left

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-6455-40

Part Description: KAIZEN YESC CONNECTOR SUB ASSEMBLY

Connector No: D2272A

Option: LHD

Repair Kit Part Number: Not Available

Cavity Count: 10

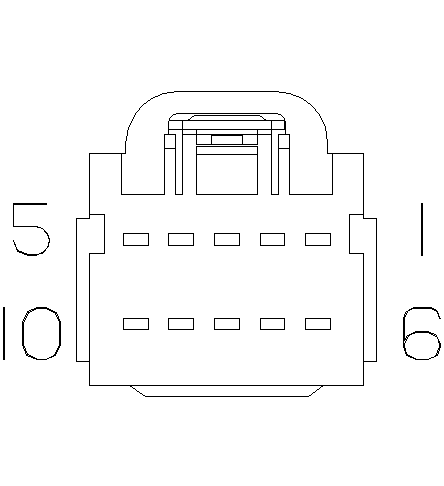

Fig 1: Switch-Mirror Connector End View (LHD)

Courtesy of CHRYSLER

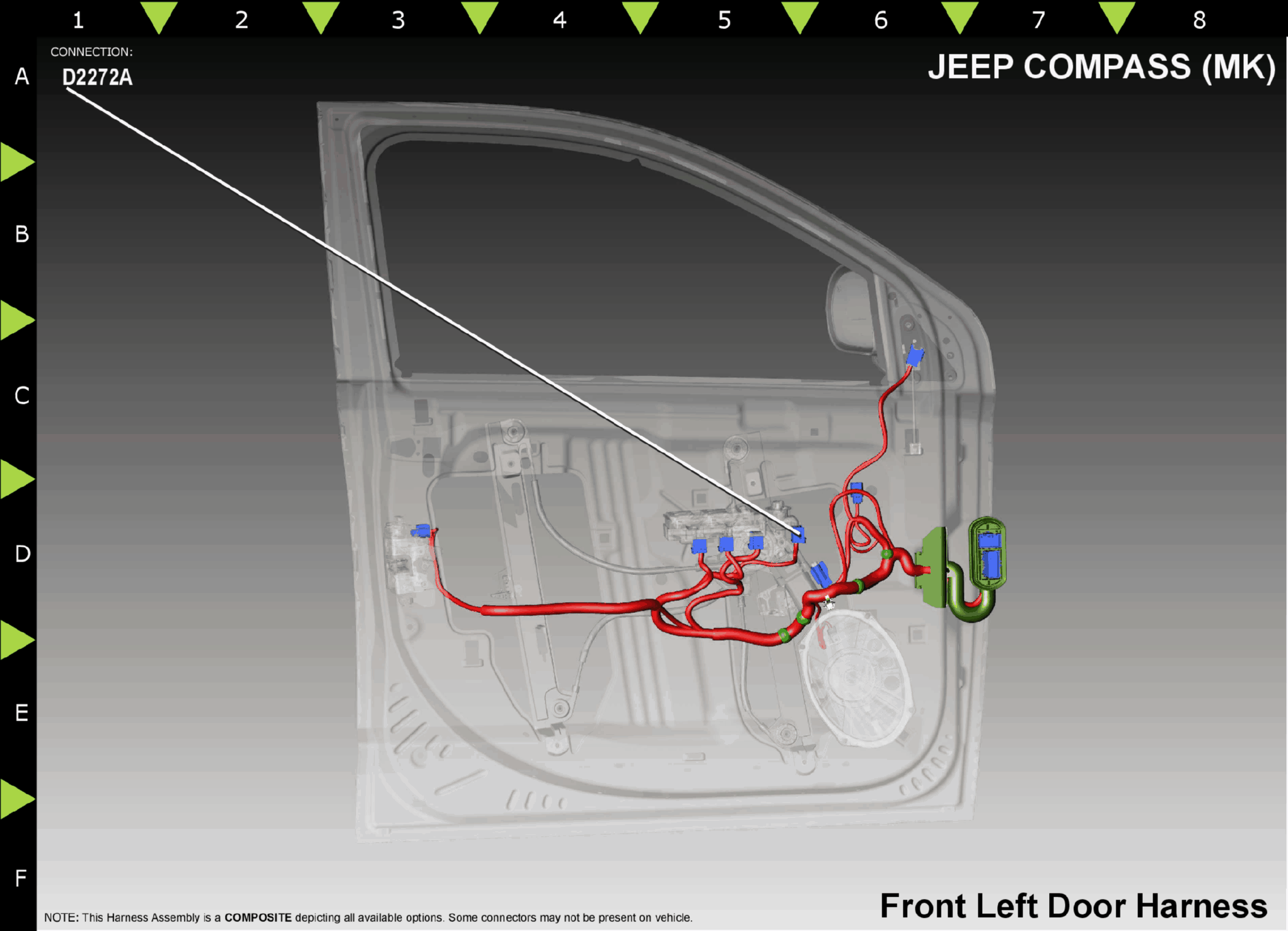

Fig 2: Switch-Mirror Component Location (LHD)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F981

PK/BR

FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT

N/A

P76

YL/PK

0.50

MIRROR COMMON DRIVER

N/A

Z919

BK/LB

0.50

GROUND

N/A

A417

RD/DG

0.50

FUSED B(+)

N/A

P72

BG/GY

0.50

PASSENGER MIRROR VERTICAL DRIVER

N/A

P71

BG/DG

0.50

DRIVER MIRROR VERTICAL DRIVER

N/A

P74

BG/OR

0.50

PASSENGER MIRROR HORIZONTAL DRIVER

N/A

P75

BG/OR

0.50

DRIVER MIRROR HORIZONTAL DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
