Switch-Seat Belt-Driver (D2278A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1443

Part Description: INS

Connector No: D2278A

Option: Standard

Repair Kit Part Number: 05135636AA

Cavity Count: 2

Fig 1: Switch-Seat Belt-Driver Connector End View

GCWD1016785

Courtesy of CHRYSLER

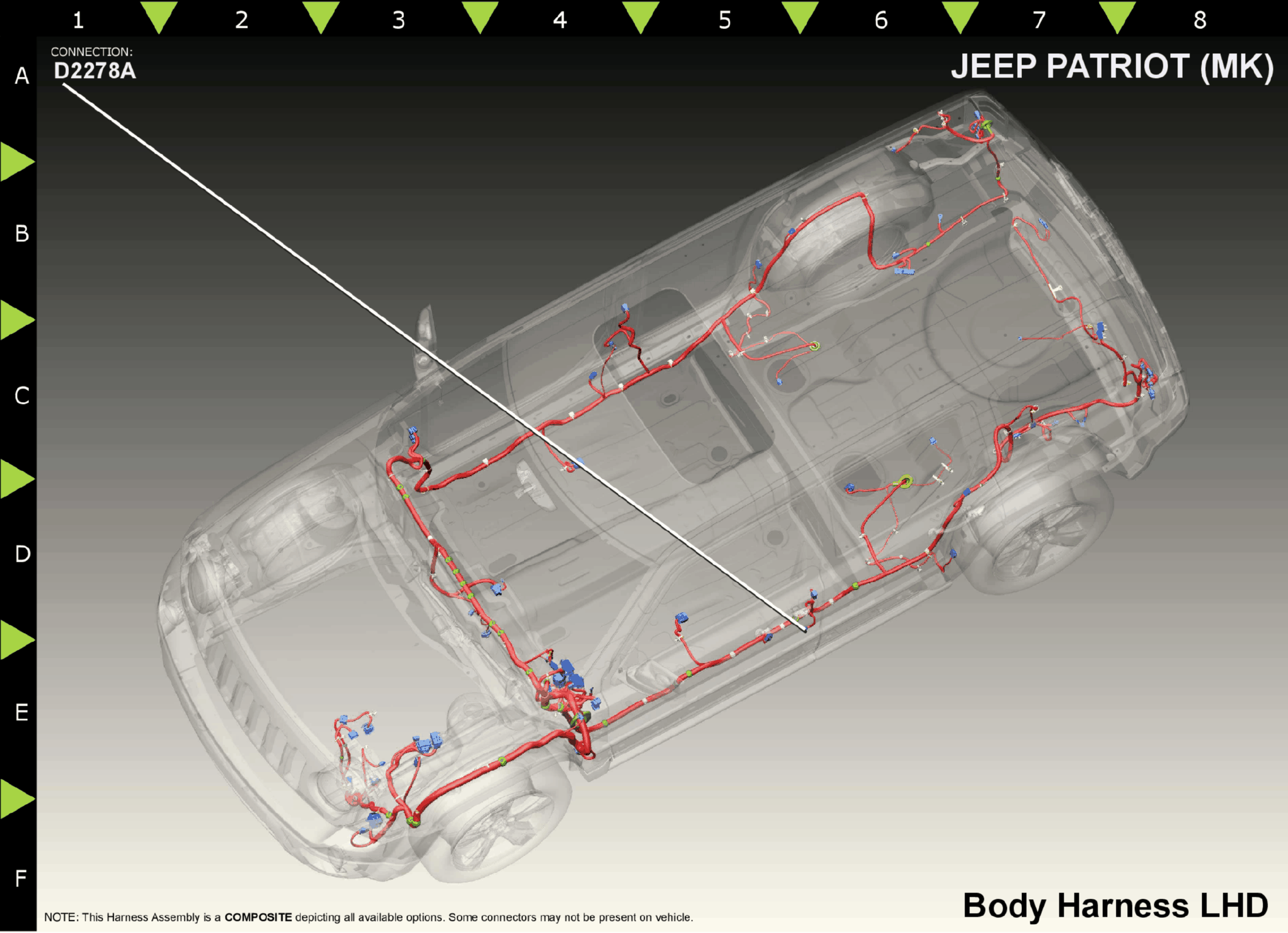

Fig 2: Switch-Seat Belt-Driver Component Location

GCWD1212027

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

R57

LG/GY

0.50

DRIVER SEAT BELT BUCKLE SWITCH SENSE

N/A

2

Z923

BK/YL

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
