Switch-Window/Door Lock-Driver C1 (LHD) (D2300A)

Harness-Family: Door_Front_Left

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-6466-40

Part Description: KAIZEN YESC 2.8MM SUB ASSEMBLY

Connector No: D2300A

Option: LHD

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Switch-Window/Door Lock-Driver C1 Connector End View (LHD)

Courtesy of CHRYSLER

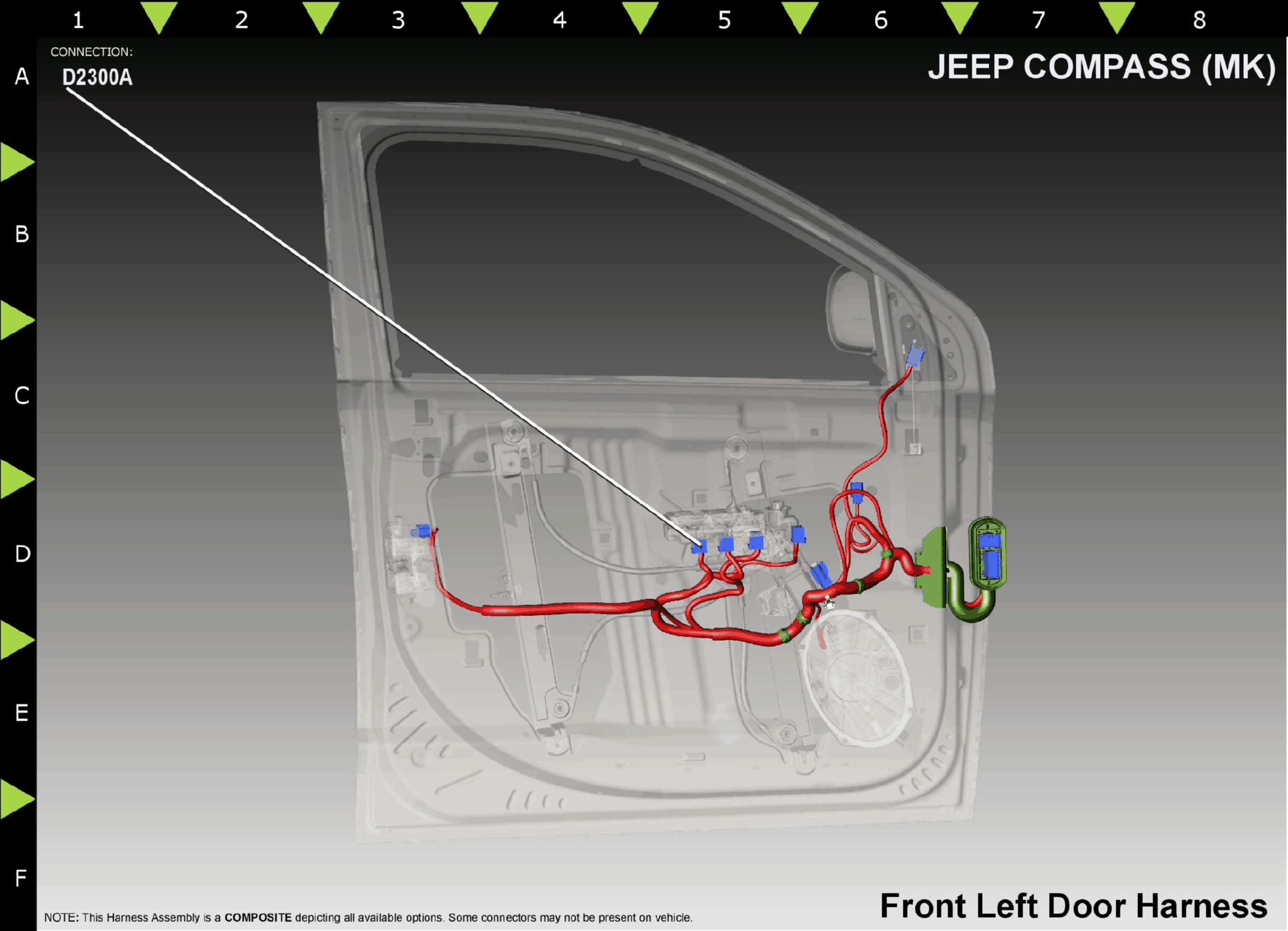

Fig 2: Switch-Window/Door Lock-Driver C1 Component Location (LHD)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Q411

OR/WT

MASTER WINDOW SWITCH LEFT REAR (UP)

N/A

Q412

OR/LB

MASTER WINDOW SWITCH RIGHT REAR (UP)

N/A

Q612

OR/DB

MASTER WINDOW SWITCH RIGHT REAR (DOWN)

N/A

Q611

OR/GY

MASTER WINDOW SWITCH LEFT REAR (DOWN)

N/A

Q26

MASTER WINDOW SWITCH RIGHT FRONT (DOWN)

N/A

Q16

OR/BG

MASTER WINDOW SWITCH RIGHT FRONT (UP)

N/A

⁽¹⁾	Pins not listed are not used for this connector
