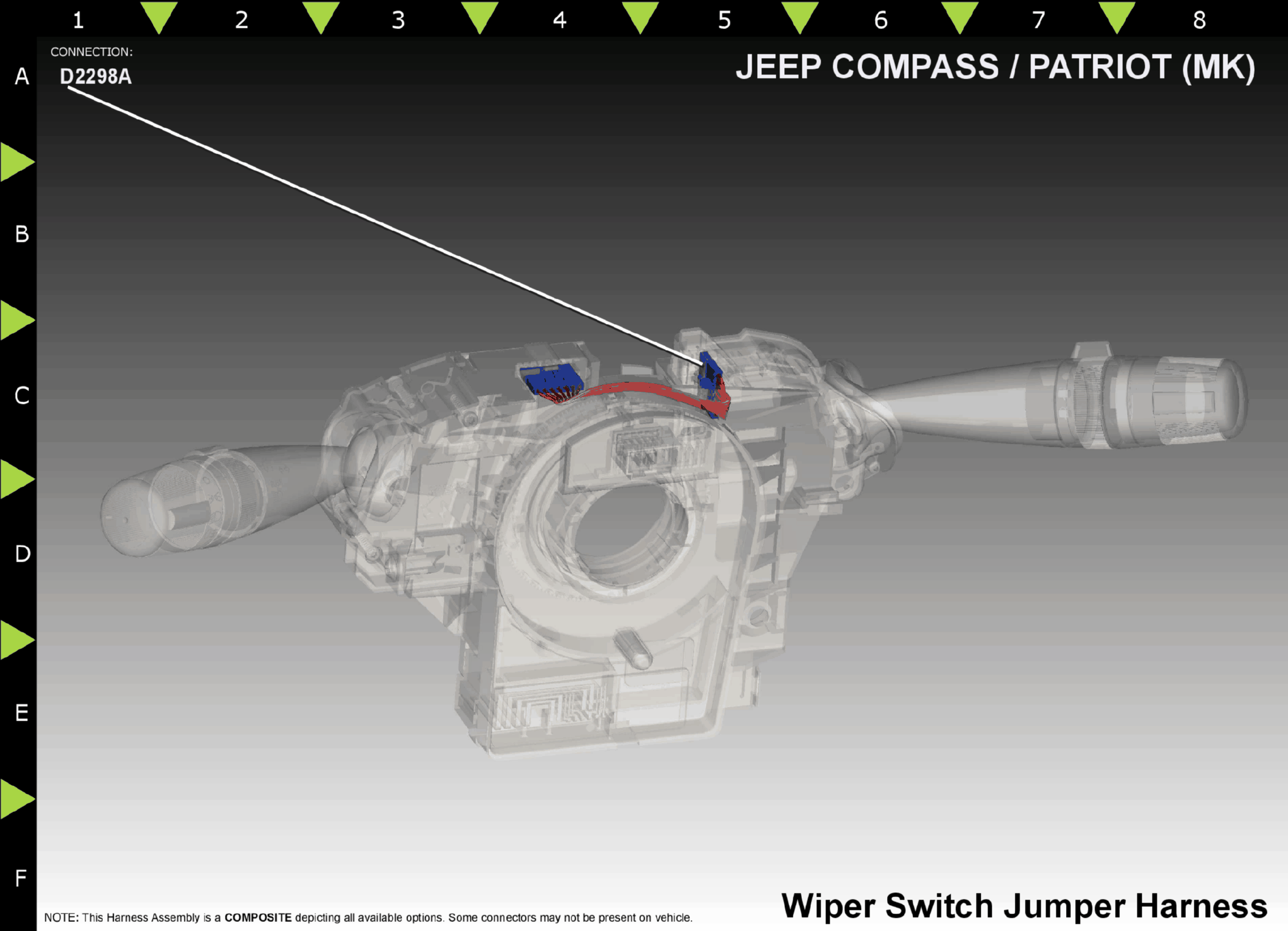

Switch-Wiper/Wash (D2298A)
Harness-Family: Wiper_Switch_Jumper
Color: BLACK
Gender: FEMALE
Part Number: 50-57-9407
Part Description: Not Available
Connector No: D2298A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | W114 | YL | 0.35 | FRONT WIPER WASHER SWITCH SIGNAL | N/A | ||
| 2 | W115 | YL | 0.35 | REAR WIPER SWITCH MUX 2 | N/A | ||
| 3 | W113 | YL | 0.35 | REAR WIPER SWITCH MUX | N/A | ||
| 4 | W54 | YL | 0.35 | FRONT WIPER SWITCH MUX 3 | N/A | ||
| 5 | W53 | YL | 0.35 | FRONT WIPER SWITCH MUX 2 | N/A | ||
| 6 | W52 | YL | 0.35 | FRONT WIPER SWITCH MUX 1 | N/A | ||
| 7 | Z903 | YL | 0.35 | GROUND | N/A | ||
|
|||||||
