CLOCKSPRING C8 (D6654H)

Harness-Family: Wiper_Switch_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 50-57-9407

Part Description: Not Available

Connector No: D6654H

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

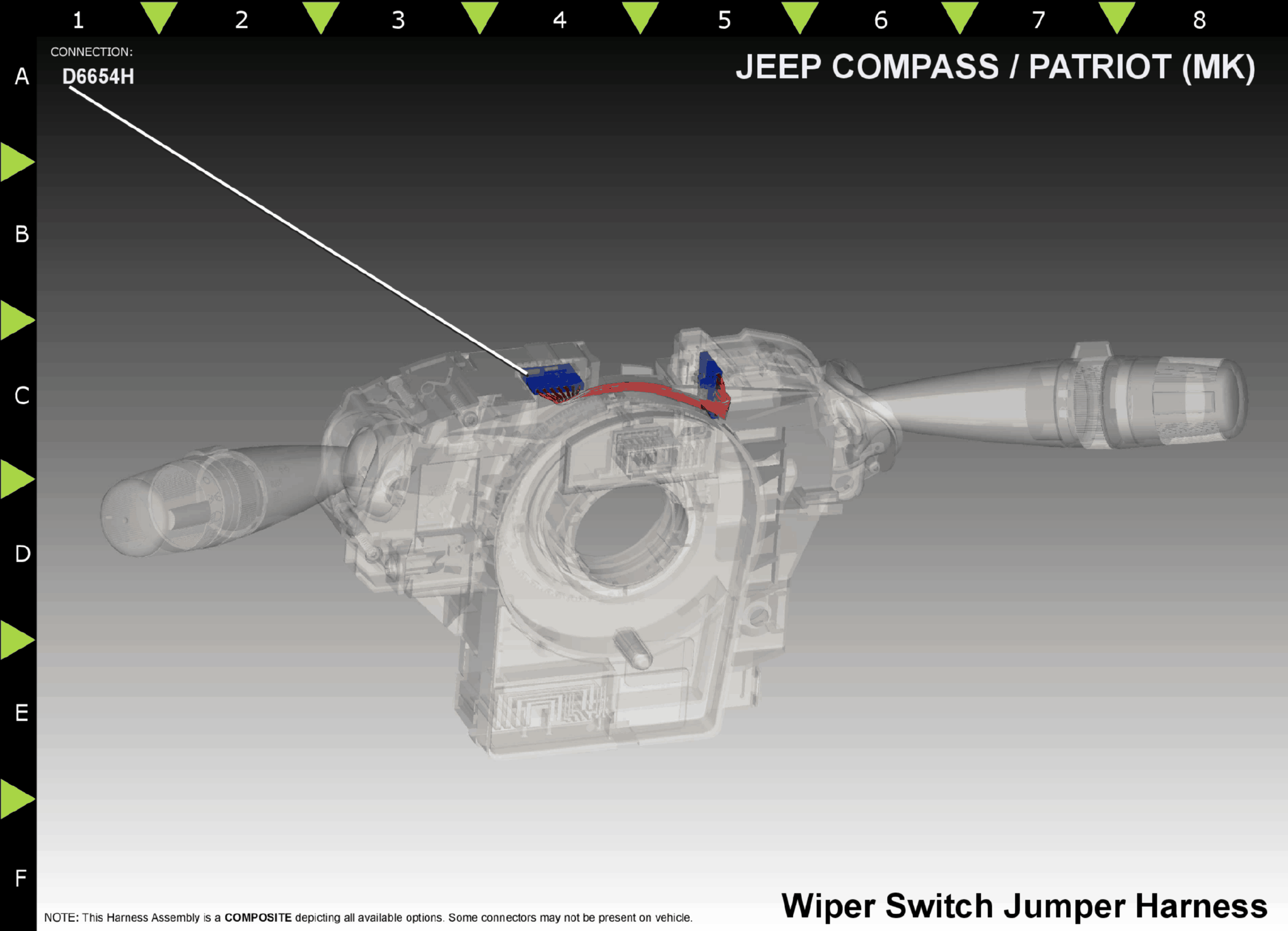

Fig 1: Clockspring C8 Component Location

GCWD1160590

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z903

YL

0.35

GROUND

N/A

2

W52

YL

0.35

FRONT WIPER SWITCH MUX 1

N/A

3

W53

YL

0.35

FRONT WIPER SWITCH MUX 2

N/A

4

W54

YL

0.35

FRONT WIPER SWITCH MUX 3

N/A

5

W113

YL

0.35

REAR WIPER SWITCH MUX

N/A

6

W115

YL

0.35

REAR WIPER SWITCH MUX 2

N/A

7

W114

YL

0.35

FRONT WIPER WASHER SWITCH SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
