Cluster C3 (D3809C)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 7283-9110-30

Part Description: KAIZEN CONNECTOR ASSEMBLY W/O CPA

Connector No: D3809C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 20

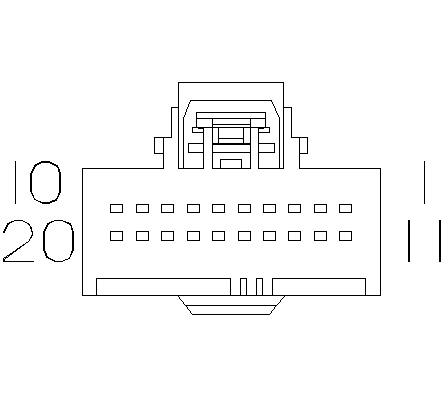

Fig 1: Cluster C3 Connector End View

Courtesy of CHRYSLER

Fig 2: Cluster C3 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D506

WH/DG

0.35

LIN BUS

N/A

F202

PK/GY

0.80

IGNITION RUN/START CONTROL OUTPUT

N/A

K77

BR/WH

0.50

TRANSFER CASE POSITION SENSOR INPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
