Fuse 13 20A (F6013)

Harness-Family: TIPM_Internal

Color: NA

Gender: MALE

Part Number: FUSE-CKT_BREAKER

Part Description: Not Available

Connector No: F6013

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse 13 20a Connector End View

GCWD1006305

Courtesy of CHRYSLER

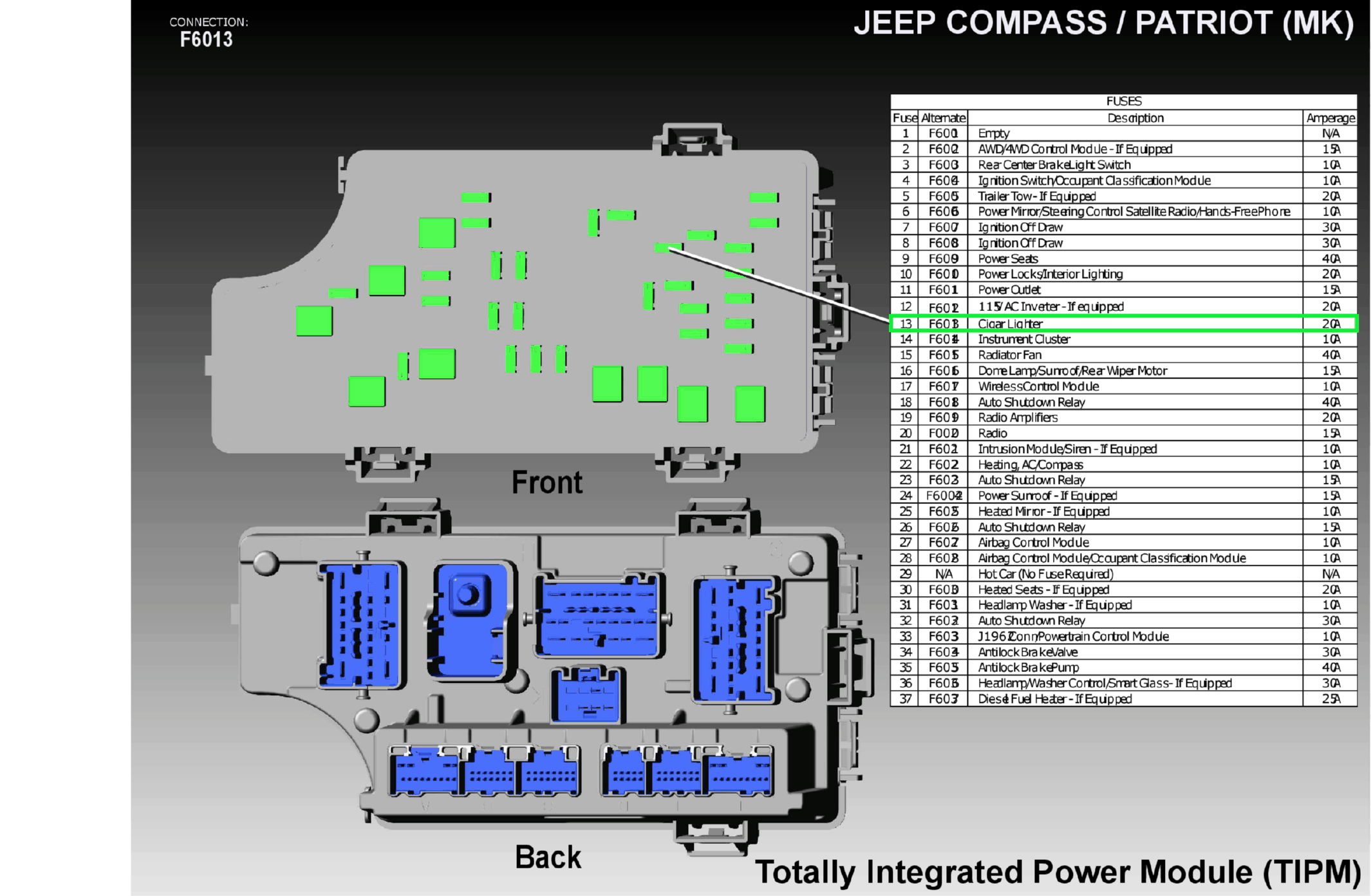

Fig 2: Fuse 13 20a Component Location

GCWD1160471

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

F986

INTERNAL

NA

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

N/A

⁽¹⁾	Pins not listed are not used for this connector
