Connector End Views & Electrical Component Locations (1 Of 3): G924A

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: R206

Part Description: EYELET TERMINAL (TIN)

Connector No: G924A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: G924a Connector End View

Courtesy of CHRYSLER

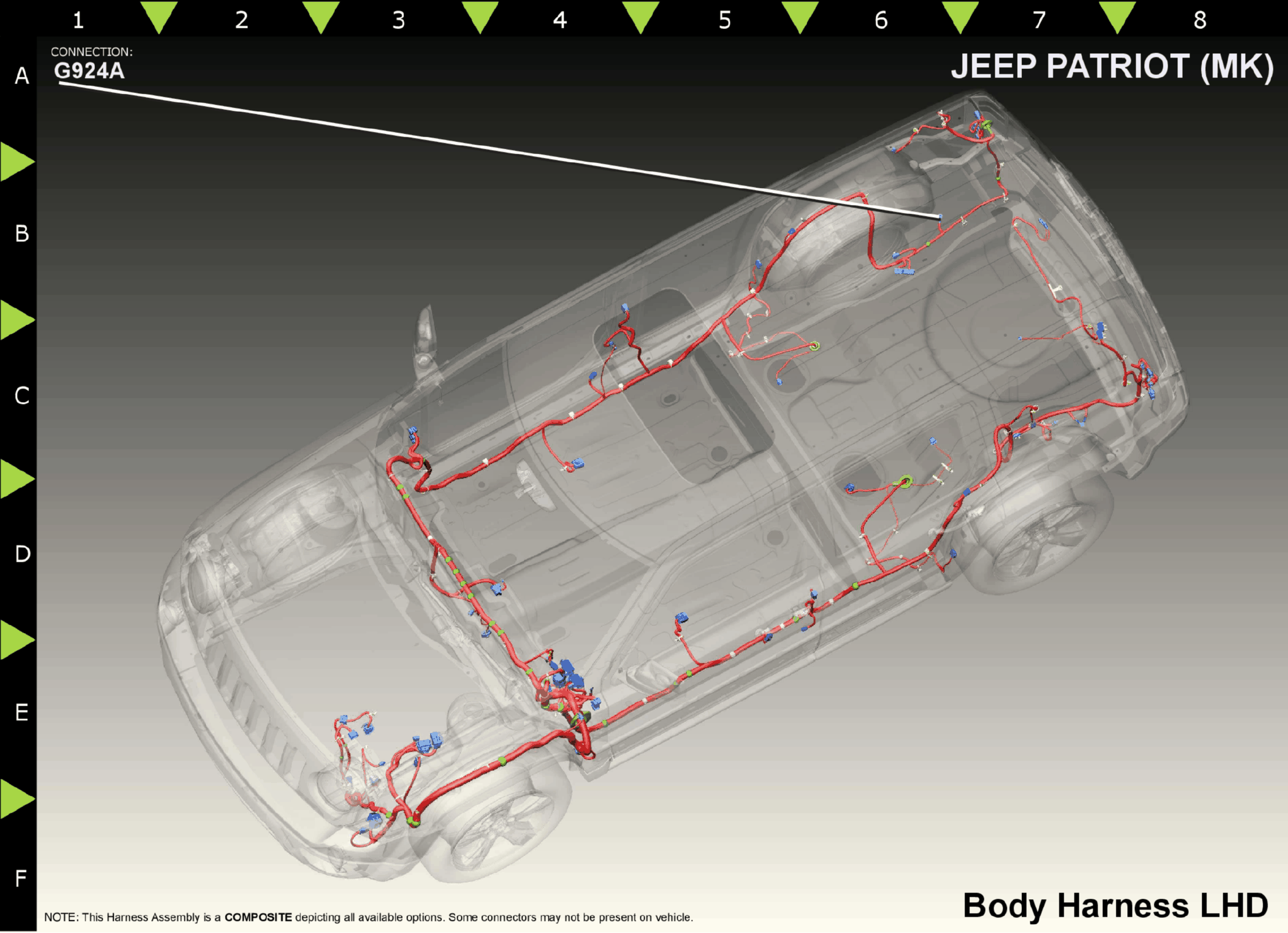

Fig 2: G924a Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z924

BK/YL

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
