Generator C1 (D3000A)

Harness-Family: Powertrain

Color: NA

Gender: FEMALE

Part Number: 15326276

Part Description: Not Available

Connector No: D3000A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Generator C1 Connector End View

GCWD1087017

Courtesy of CHRYSLER

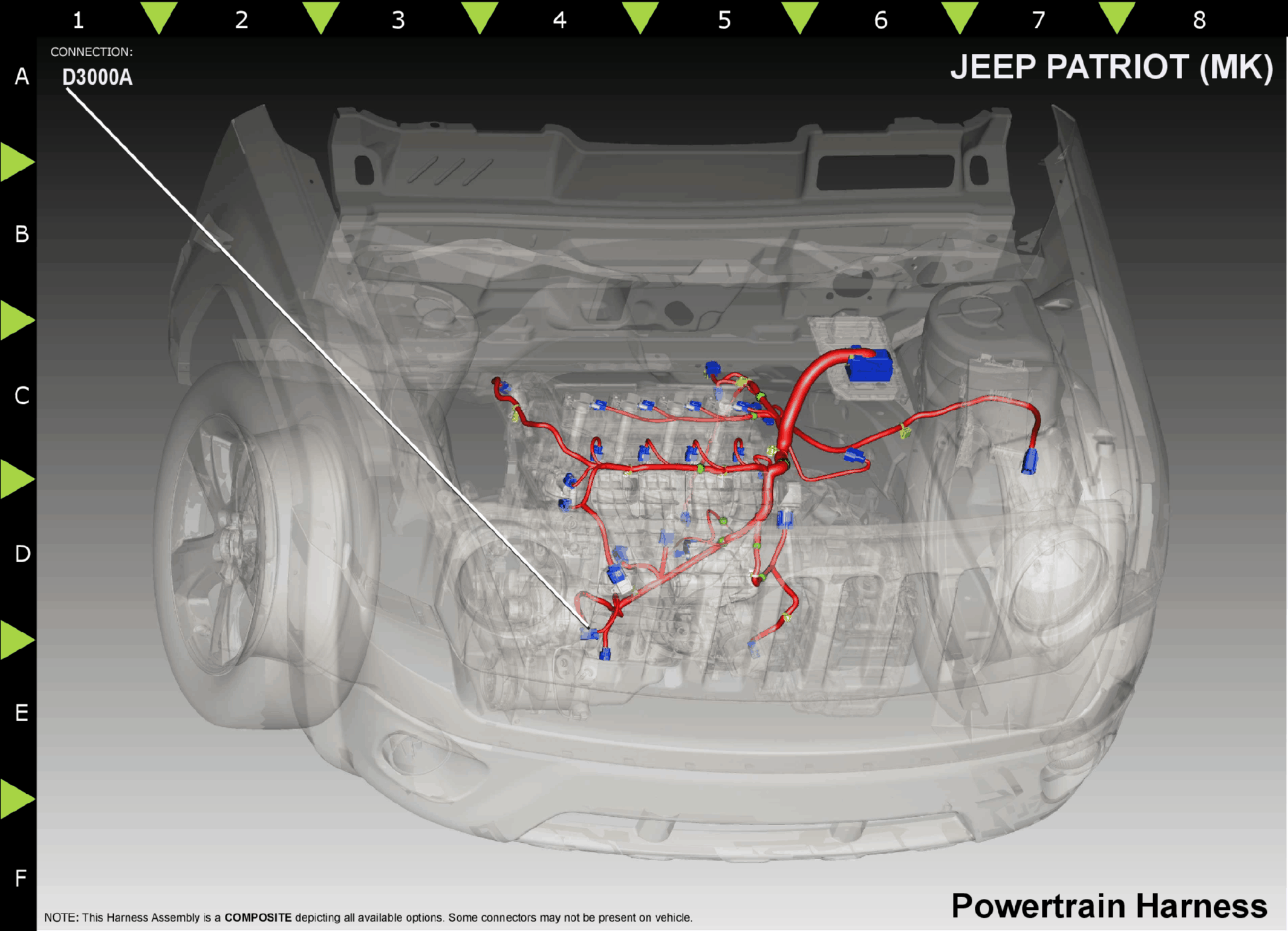

Fig 2: Generator C1 Component Location

GCWD1211900

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A801

RD/GY

6

B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
