Heater-Seat Back-Left (D6735A)

Harness-Family: Seat_Left_2

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-5530-40

Part Description: Not Available

Connector No: D6735A

Option: Standard

Repair Kit Part Number: 68065023AA

Cavity Count:

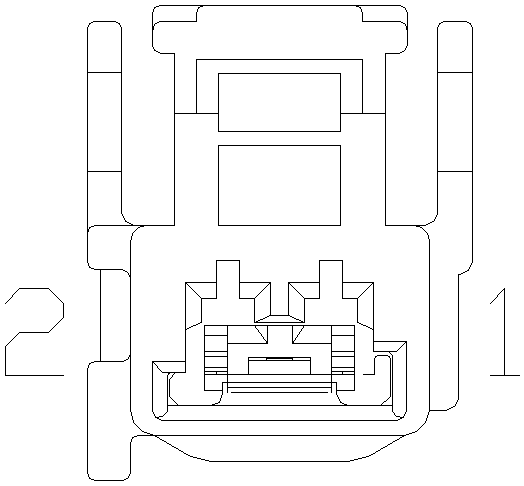

Fig 1: Heater-Seat Back-Left Connector End View

GCWD1024538

Courtesy of CHRYSLER

Fig 2: Heater-Seat Back-Left Component Location

GCWD1160591

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

P187

BK

0.80

LEFT FRONT SEAT HEATER CONTROL

N/A

2

Z960

BK

0.80

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
