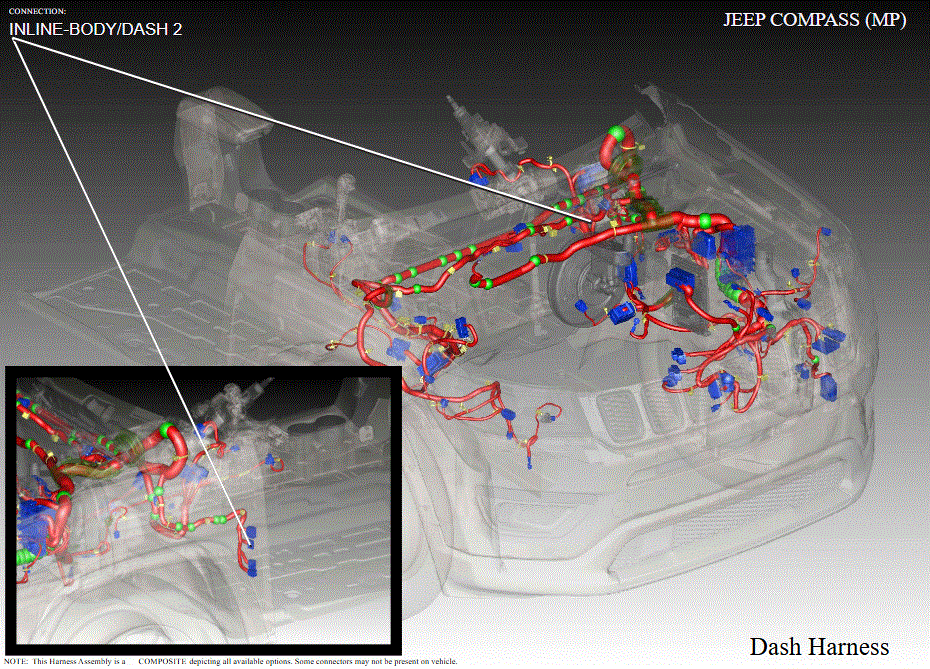

Inline-Body/Dash 2 (Female) (X205A)
Harness Family: Dash
Color: NATURAL
Gender: FEMALE
Part Number: 6098-4594
Connector No: X205A
Option: Standard
Repair Kid Part Number: --

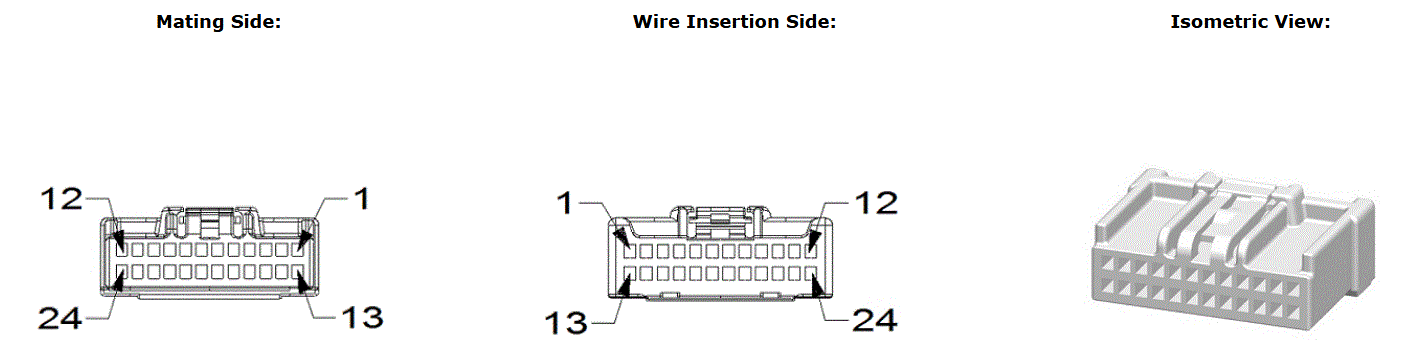

Cavity Count: 24
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | A910 | RD | 0.75 | FUSED B(+) | |||
| 3 | B3 | DG/YE | 0.35 | LEFT REAR WHEEL SPEED SENSOR (-) | |||
| 4 | B4 | DG/GY | 0.35 | LEFT REAR WHEEL SPEED SENSOR (+) | |||
| 6 | B1 | DG/OG | 0.35 | RIGHT REAR WHEEL SPEED SENSOR (-) | |||
| 7 | B2 | DG/BU | 0.35 | RIGHT REAR WHEEL SPEED SENSOR (+) | |||
| 8 | B135 | DG/GN | 0.35 | BRAKE SIGNAL 1 | |||
| 9 | L144 | BG/OG | 0.50 | RIGHT SIDE MARKER CONTROL | |||
| 10 | L145 | WH/OG | 0.50 | LEFT SIDE MARKER CONTROL | |||
| 11 | G31 | VT/GN | 0.50 | AAT SIGNAL | |||
| 12 | G931 | VT/BN | 0.50 | SENSOR GROUND | |||
| 13 | L118 | BG/OG | 0.50 | RIGHT FRONT PARK LAMP DRIVER | |||
| 14 | K917 | BN/BG | 0.35 | SENSOR GROUND | |||
| 15 | N7 | DB/OG | 0.50 | FUEL TANK PRESSURE SIGNAL | |||
| 16 | K859 | BN/DB | 0.35 | 5 VOLT SUPPLY | |||
| 17 | L117 | BG/DB | 0.50 | LEFT FRONT PARK LAMP DRIVER | |||
| 18 | K108 | VT/GY | 0.50 | EVAP PURGE SOLENOID SENSE | |||
| 19 | P502 | GN/DG | 0.50 | PASSENGER MIRROR TURN SIGNAL DRIVER | |||
| 20 | T12 | DG/YE | 0.35 | CLUTCH INTERLOCK SIGNAL | |||
| 22 | P501 | GN/GY | 0.50 | DRIVER MIRROR TURN SIGNAL DRIVER | |||
| 24 | C110 | DB/BU | 0.50 | MIRROR HEATER DRIVER | |||
|
|||||||
