Inline-Body/HDLP Dash (I201A)

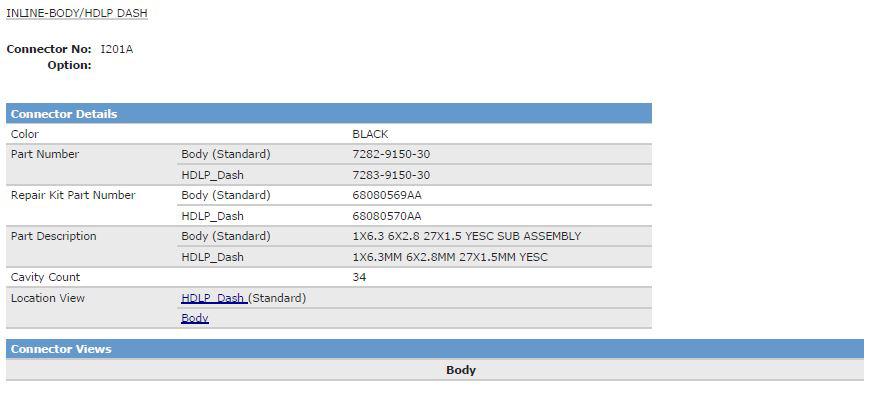

Fig 1: Inline-Body/Hdlp Dash Connector End View (1 of 5)

G00575146

Courtesy of CHRYSLER

Fig 2: Inline-Body/Hdlp Dash Connector End View (2 of 5)

G00575147

Courtesy of CHRYSLER

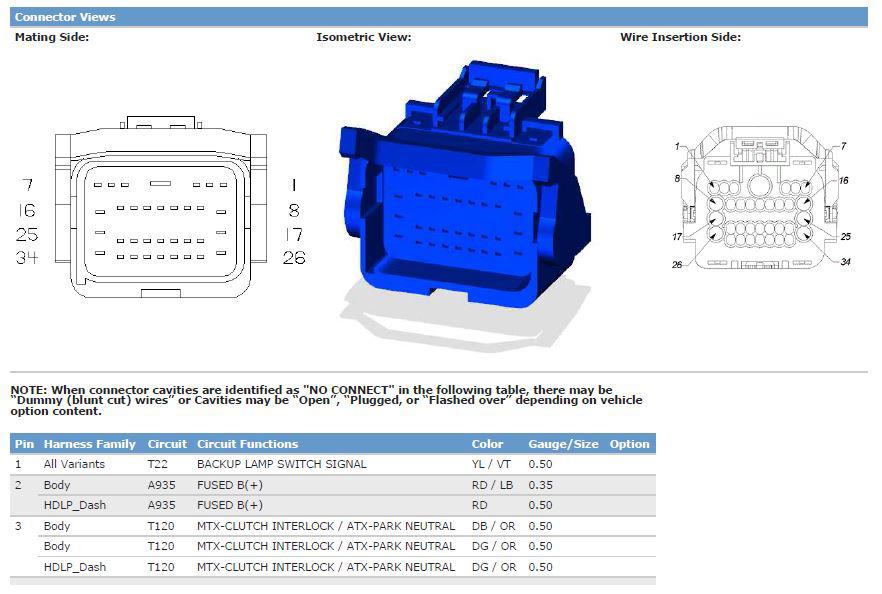

Fig 3: Inline-Body/Hdlp Dash Connector End View (3 of 5)

G00575148

Courtesy of CHRYSLER

Fig 4: Inline-Body/Hdlp Dash Connector End View (4 of 5)

G00575149

Courtesy of CHRYSLER

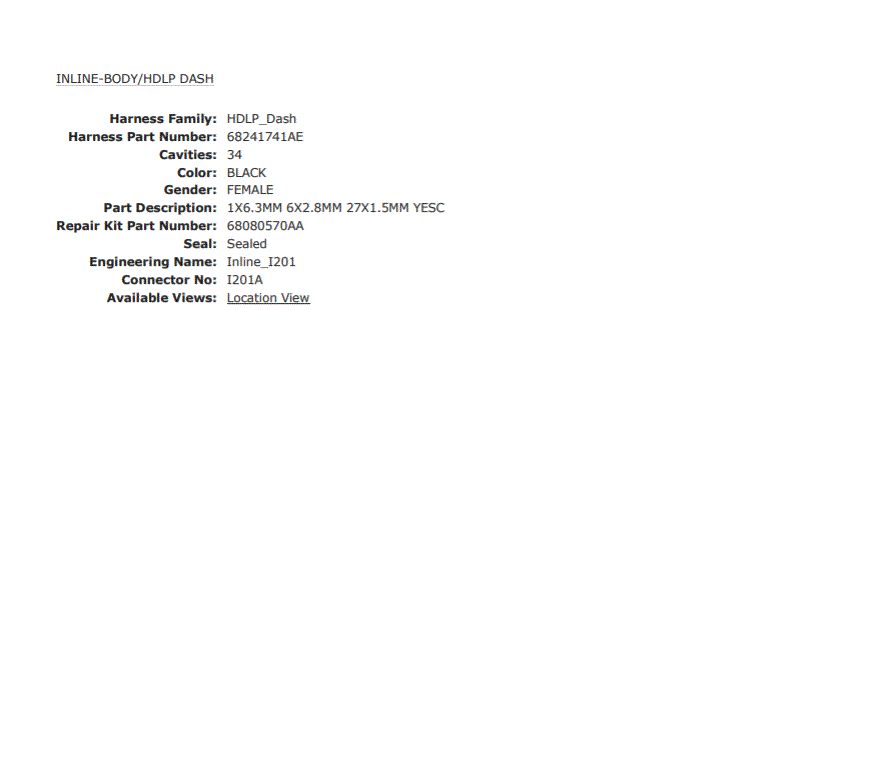

G00610764

Courtesy of CHRYSLER

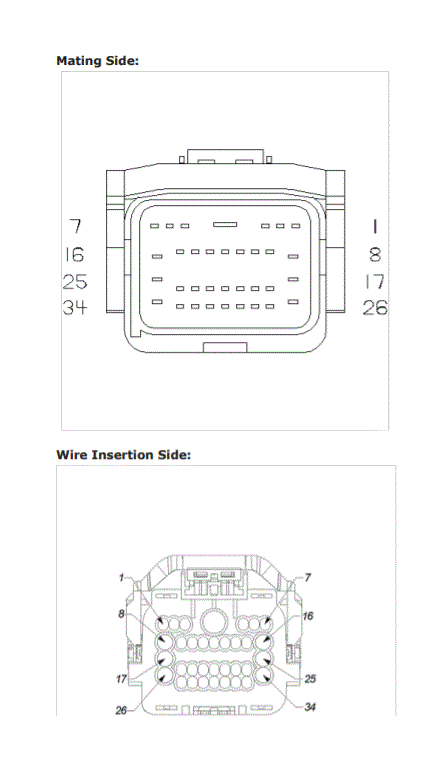

G00610765

Courtesy of CHRYSLER

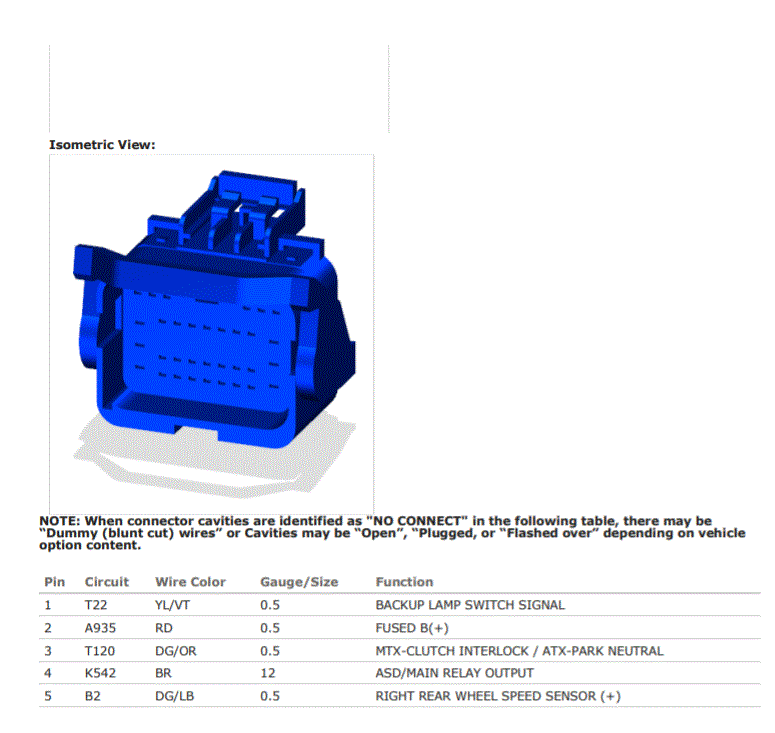

G00610766

Courtesy of CHRYSLER

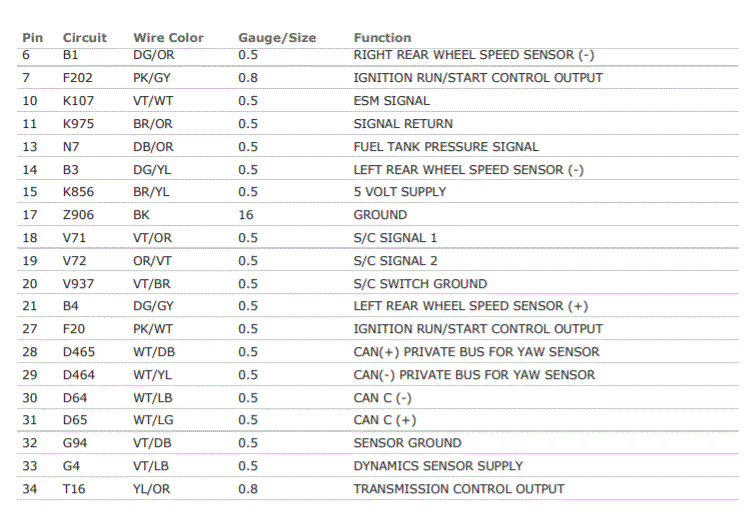

G00610767

Courtesy of CHRYSLER

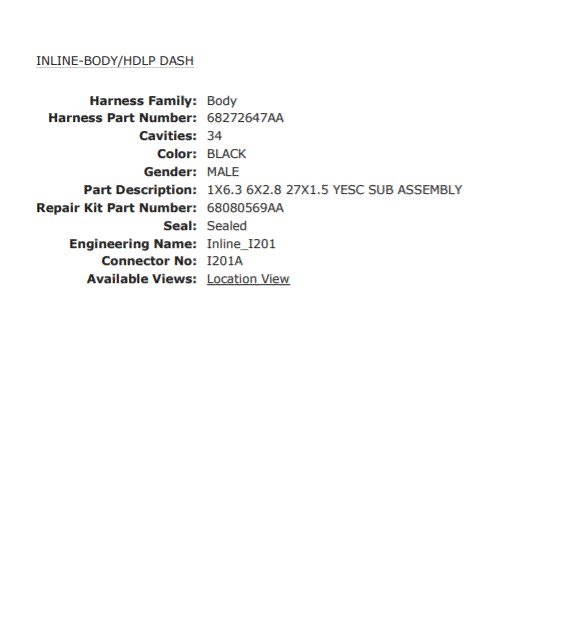

G00610768

Courtesy of CHRYSLER

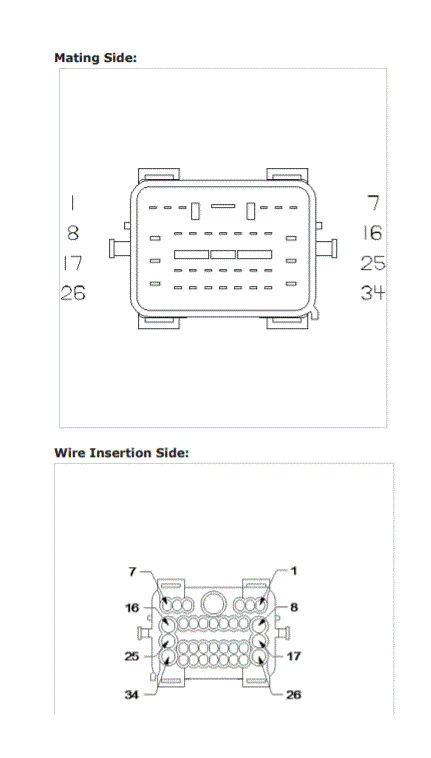

G00610769

Courtesy of CHRYSLER

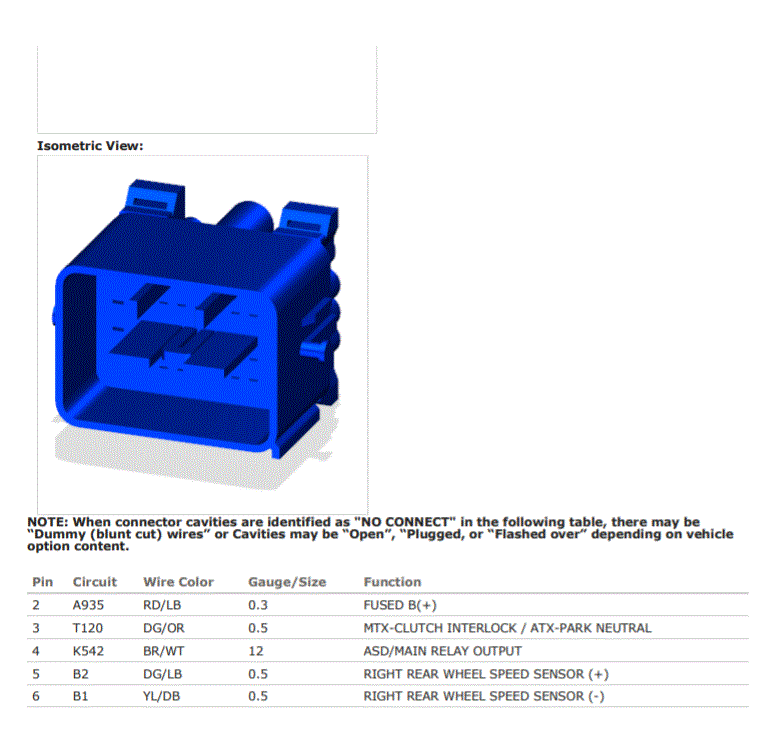

G00610770

Courtesy of CHRYSLER

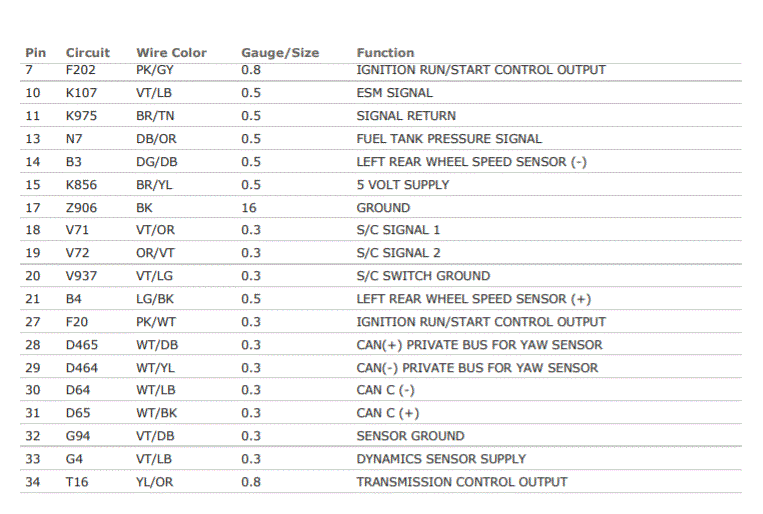

G00610771

Courtesy of CHRYSLER
